Product Description

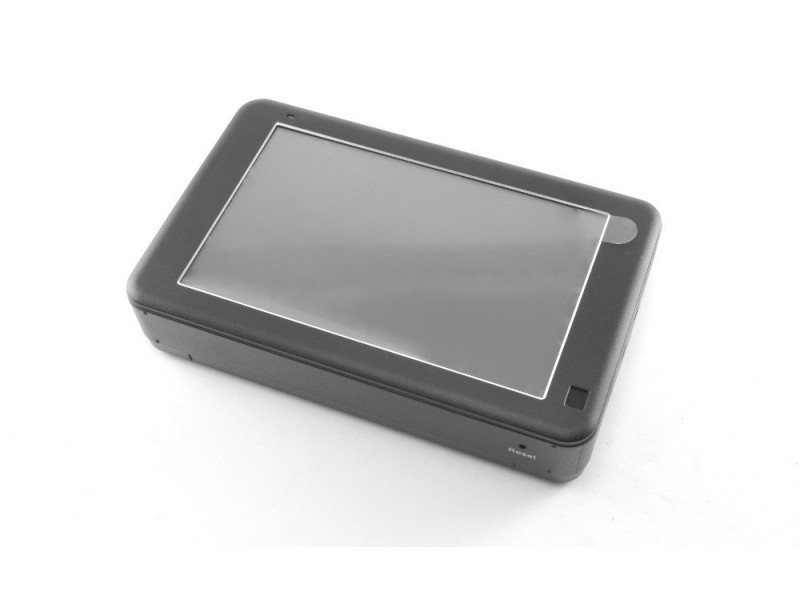

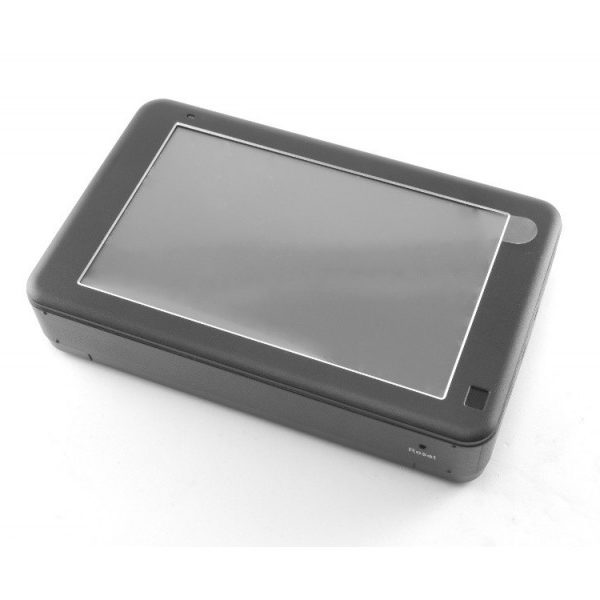

The 2014 Lawmate PV-1000 is the most sophisticated portable DVR on the market.
Features:
1080p Full High Definition Recording
Video Recording and Photo Capture
Adjustable fps(frame per second)
Pre-Event Recording
Multi-Layer Password Protection
Documentary Log File Ready
Specifications:
Display: 5″ RGB 800X480 Color TFT LCD
Video Input: NTSC/ PAL Auto-Detection
Recording Mode: Standard / Motion Detection / Schedule / Pre-Event /Pre-Motion Mode
Resolution Mode:
320×240/640×480/720×480/1024×768/1280×720/1280×960/1920×1080/Real Time
Max. Resolution: Above 720p (1280×960) & 1080p (1920×1080)
Memory Type: Built-in 2.5”320GB SATA HDD & SD Card (Supports up to 16GB SDHC)
Frame Rate: 1, 5, 15, 25, 30 fps Adjustable
DC5V to Camera: DC5V 320mA Max
DC12V to Camera: DC12V 160mA Max (through optional remote switch)
PC Interface: USB 2.0
Image Quality (Bit rate):
In Standard 720×576@25FPS (PAL)
In Standard 720×480@30 FPS (NTSC)
High (5Mbps) / Medium (3.3Mbps) / Low (2.5Mbps) Adjustable
Date/Time Table: YYYY/MM/DD (America) , HH,MM,SS (U.K.)
Frame Counter Stamp: Yes
Picture Format: Baseline JPEG
Power Cunsumption: 5V / 2.5A
Battery Type: DC 3.7V / 4400mA Lithium battery
Battery Life: 120-180 minutes
Dimensions & Weight(w/o battery): 142 x 88 x 30(mm) / 317g
