Product Description

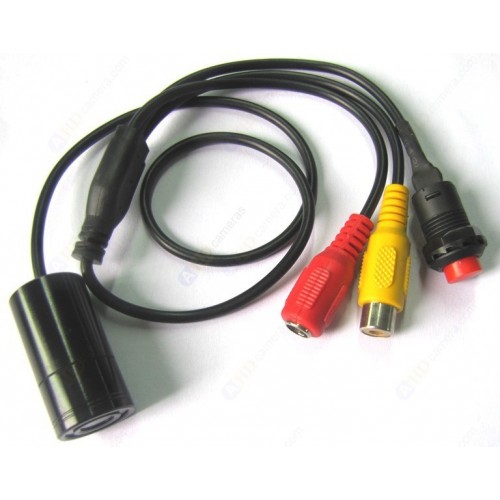

Invisble 940nm ir camera waterproof (90deg view,8 IR lights/5m,520tvl)
Pls kindly note that:
1) Standard cable length is 0.5m, 1~20m for optional: USD0.5/m
if you want longer cable,you can make the order first ,and leave me message.
Then pay for it after I changed the price.
2) There are 3 ways to control led lights(light;manual;self-motion), if no choice,default manual.
How to use it:
1) Power the camera by AC adapter
2)Connect camera with TV or monitor to watch video.
Connect DVR to record video.
RCA or BNC cable x1 (only one cable, if no choice, default RCA) , you also can leave me message about connector you want.
Features & functions
1. 8 high light lamps enable the effective night vision distance up to 5 meters; 2. High luminous flux (F1.2) and wide view angle (90°) mini lens; 3. Surveillance area up to 100 square meters in the complete darkness; 4. Small size, which is easy to install into narrow room and slim tube, etc.; 5. 520TVL chip synthesis technology offers true color & HD video. NTSC or Pal Full TV system. Applicable worldwide.
Specifications:
PICK UP ELEMENT
Single chip 1/4 CMOS
SYSTEM
NTSC
Pal
NUMBER OF PIXEL
NTSC:656(H)×492(V)
Pal:728×576
SENSOR DIMENSION
4.75mm(H)×3.55mm(V)
HORIZONTAL RESOLUTION
Approximately 520TV Lines
SENSITIVITY
MCV8-LED:0.00Lux/5m MCV8-IR940:0.00Lux/5m MCV8-IR850:0.00Lux/8m
LENS & VIEW ANGLE
0.5mm F1.2 / 90 °
LED Control
1)light; 2)manual:on-off 3)self-motion:on at night, off at day (default manual)
LED
MCV8-LED
8LED:17600mcd
MCV8-IR940
8IR940
MCV8-IR850
8IR850
VIDEO OUT
1.0V p-p/75ohm
LED Control OUT
On-Off
WEIGHT
MCV8:12g
Stand:15g
WORK CURRENT
DC5V(LED OFF): 70mA DC5V(LED ON): 220-240mA
POWER REQUIREMENT
DC5V:(3.6-5V )
OPERATING TEMPERATURE
– 10° C ~ +50°C ,less than 90% RH
Connection
PIN1àRedDC5V PIN2àBlack GND PIN3àYellow VIDEO OUT PIN4à WhiteLED ControlOUT
Package Contents:
waterproof camera x1
User manual x1
AC adapter x1
