Product Description

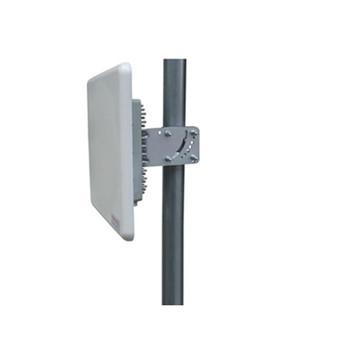

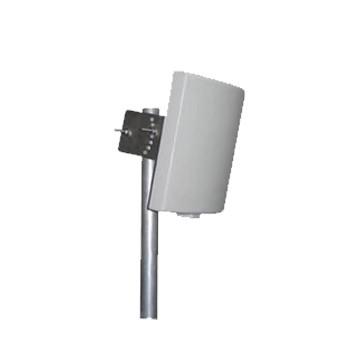

8dBi 1020~1100MHz High Gain Antenna Flat Panel Antenna
Specifications:
Frequency Range
1020~1100MHz
Beamwidth of Horizontal
>60°
Beamwidth of Vertical
>60°
Gain
8dBi
Polarization
Vertical
Max Power
≥500W
VSWR
≤1.5
Impedance
50Ω
Connector
N
Lighting Protection
DC Grounding
Work Temperature
-45°C~+70°C
Storage Temperature
-55°C~+85°C
Humidity
100%
Rated Wind Velocity
60m/s
Size
L*W*H(220*190*50mm)
Antenna Erection
1 Fix the wave director and the oscillator in a counterpoint ( please take notice that the drain hole of oscillator should be downward).
2 Erect the antennas to the pole with clamp according to polarization required.
3 Connect the RF cables well, and wrap up the connector with waterproof adhesive tape, and do not let the cable flutter in the wind.
4 Make a shield for protection the water back into the home before RF cables were acrossed indoor.
