Product Description
3MP high Resolution design, apply to 720P and 1080P cctv Camera.
outstanding coating technology, all Lens elements are with multi-layer
broadband coating to get best Image.
Package: 1* 2.8mm lens in default, pls leave a message if you want other lens.

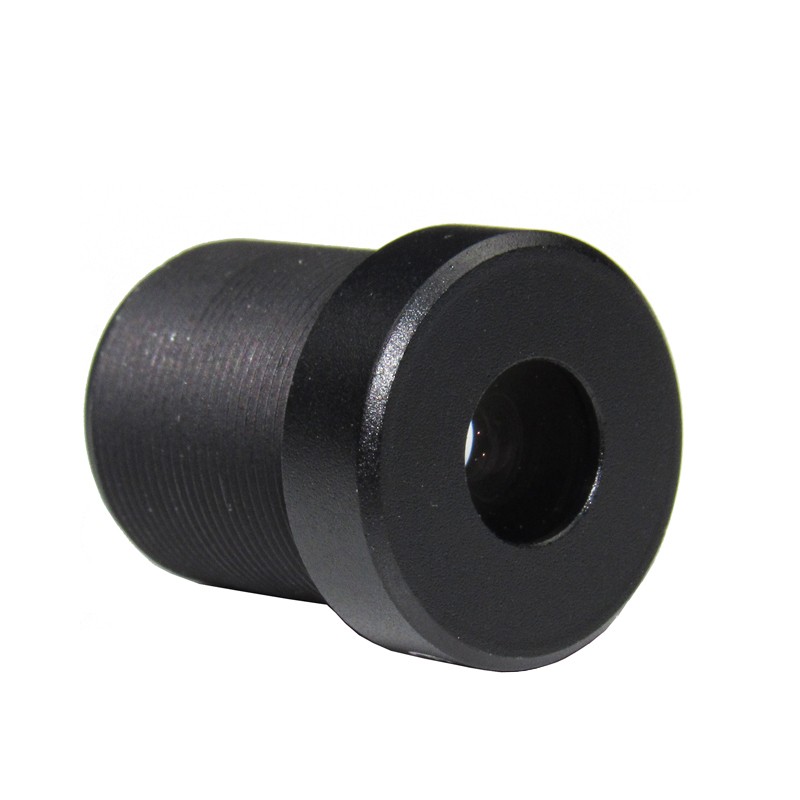

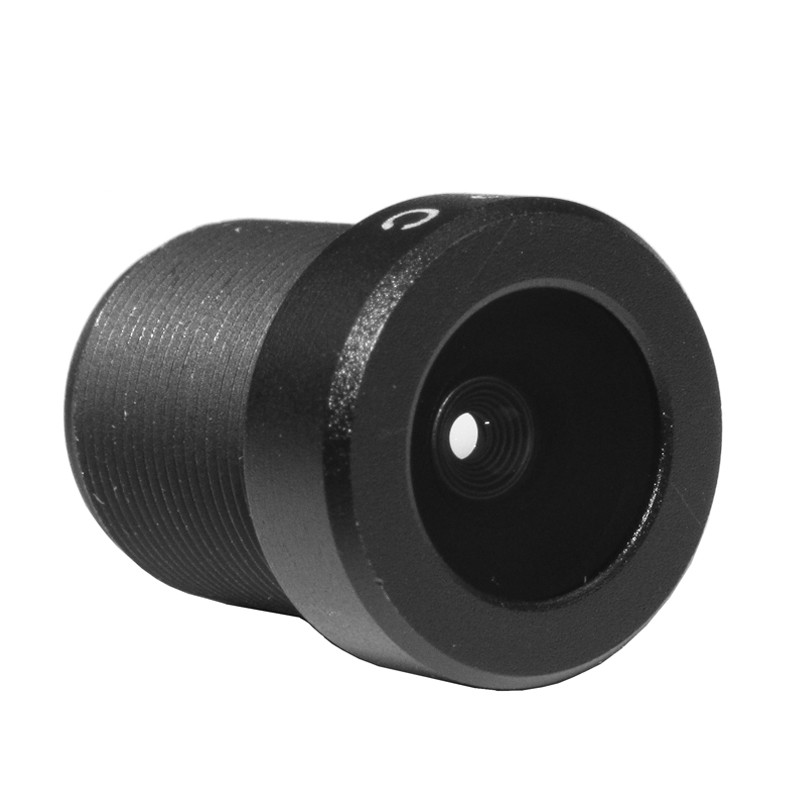

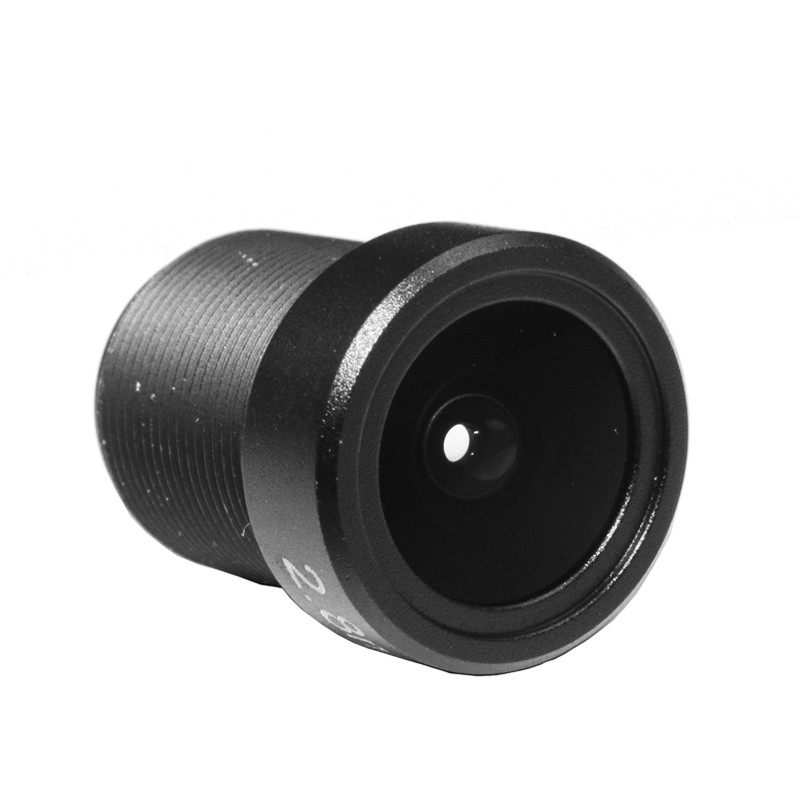

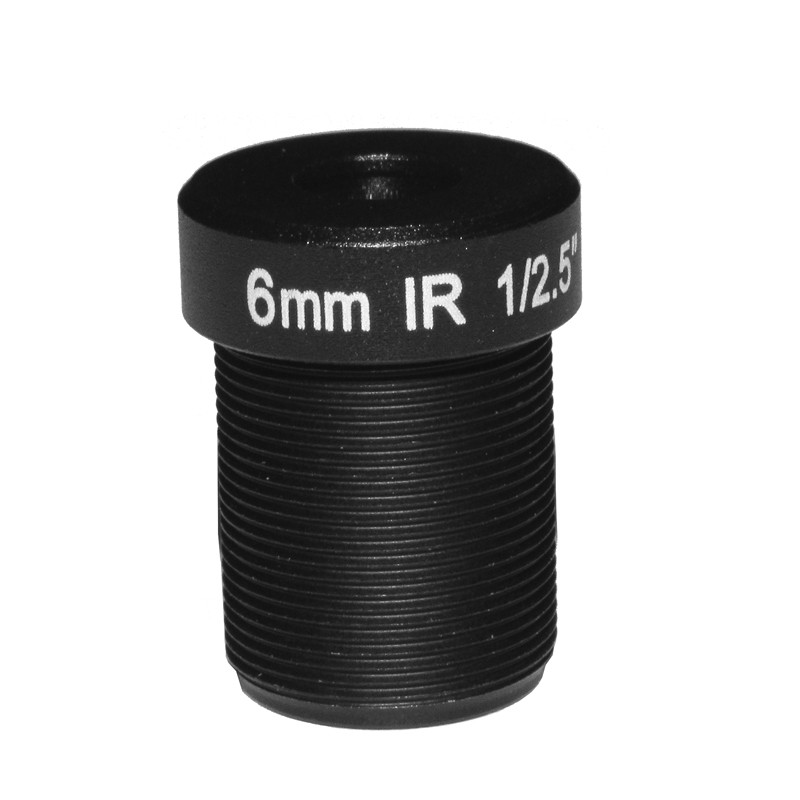

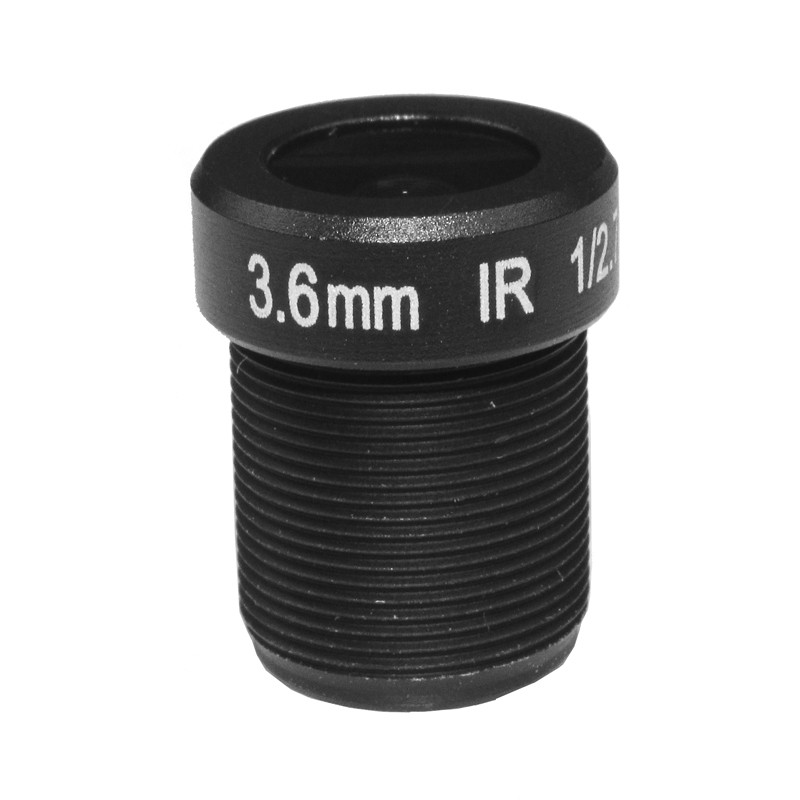

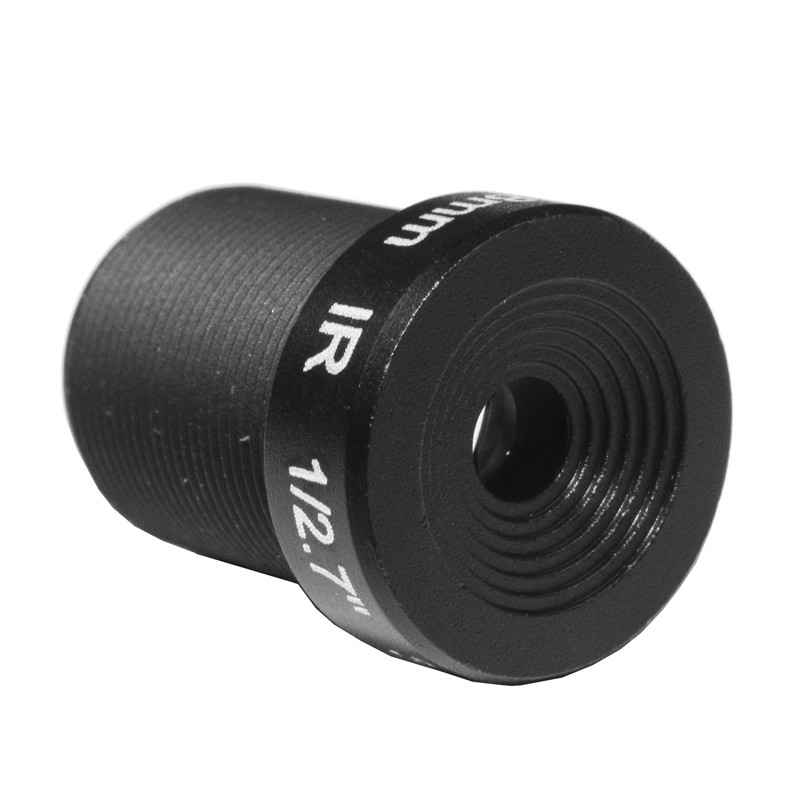

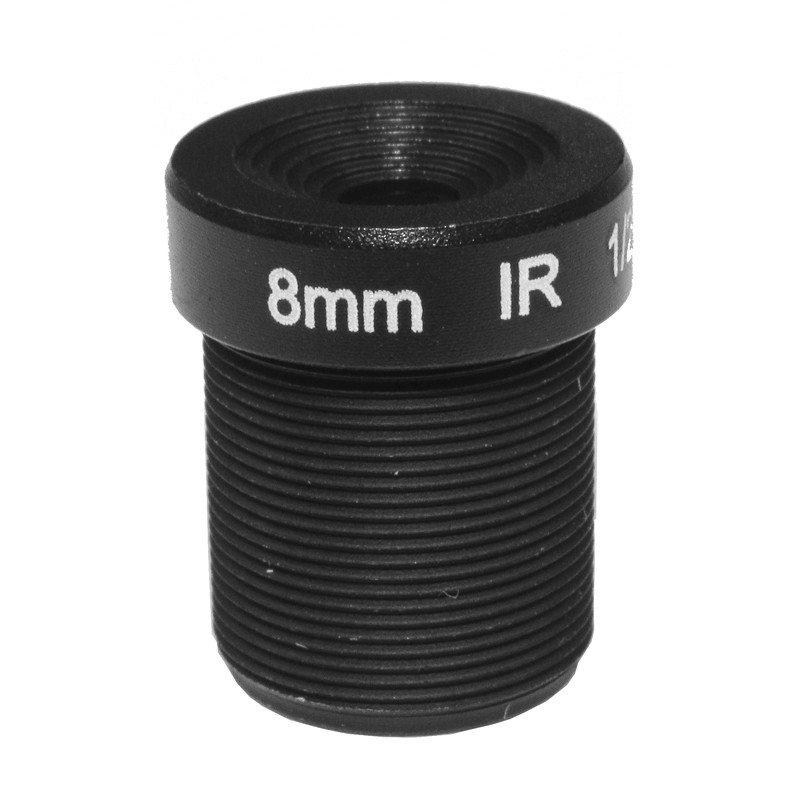

3.0Megpixel Fixed Iris M12 2.8mm/3.6mm/6mm/8mm IR HD Security Camera Lens:
Main Specifications:
Model no. M12-2.8IR(3MP)-C M12-3.6IR(3MP)-C M12-6IR(3MP)-C M12-8IR(3MP)-C
Focal Length 2.8mm 3.6mm 6mm 8mm
Format(Inch) 1/2.7″ 1/2.7″ 1/2.5″ 1/2.5″
Aperture(D/f’) F1:2.7 F1:2.6 F1:2.4 F1:2.4
Mount M12
Field Angle D×H×V(°) 140°×112°×84° 120°×96°×72° 66°×52.8°×39.6° 60°×45.6°×33°
Size 15*15.7mm 14*15.6mm 14*17.2mm 14*17.2mm
Weight 5g
M.O.D 0.3m
Zoom Fixed
Focus /
Iris /
Back Focal Distance 5mm 5mm 6.7mm 5.7mm
Operating Temperature -20~+60centigrade degree
