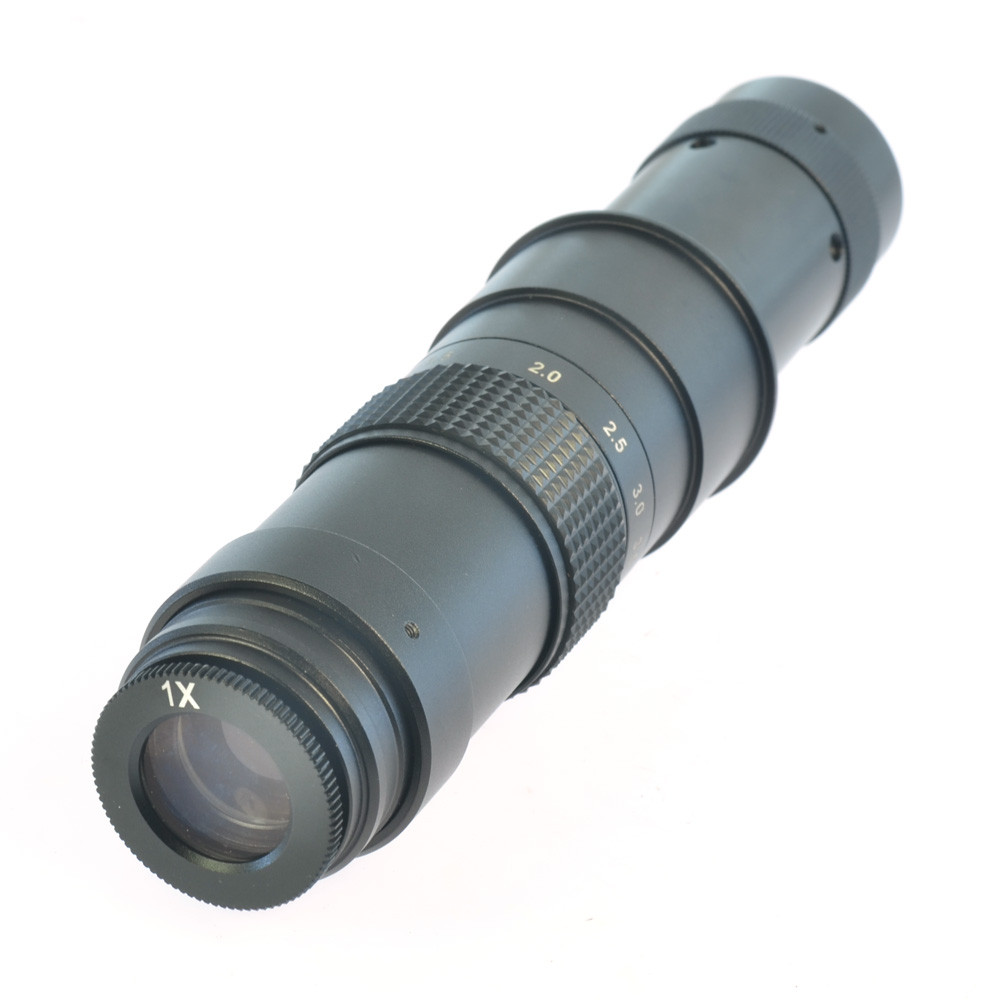

HD 0.7X-4.5X 180X Zoon C-Mount Parallel light Lens for Industry Microscope Camera Glass Lens 40mm / 50mm Ring

Product Description

Mini Lensare a monocular continuous zooming Lens, using with the high definition colour CCD or CMOS camera & TV or LCD together. Having long working distance, wide field of view; fine definition image. According to the different requirement in different condition, the user can select the supplementary objective: 0.3X,0.5X,0.75X,1X,1.5X,2X (Standard optional only 1X, if you want other size please contace with us ) and CCD adapter: 0.35X,0.5X,0.75X,1.5X,2X(Standard optional only 0.5X, if you want other size please contace with us ) a. There are also several kinds of illumination: double illumination,ring fluorescent illumination, or fiber optics light. It also can use with the image data analyzing system.

Features:

The lens with face window and side face window
Can magnify the side face of item by 2pcs reflectors
zoom c-mount Lens
0.5X C-mount adapter
Objective Magnification Power by 0.7 – 4.5X(about 10 – 180X on the display)
Zoom Rate:6.5:1

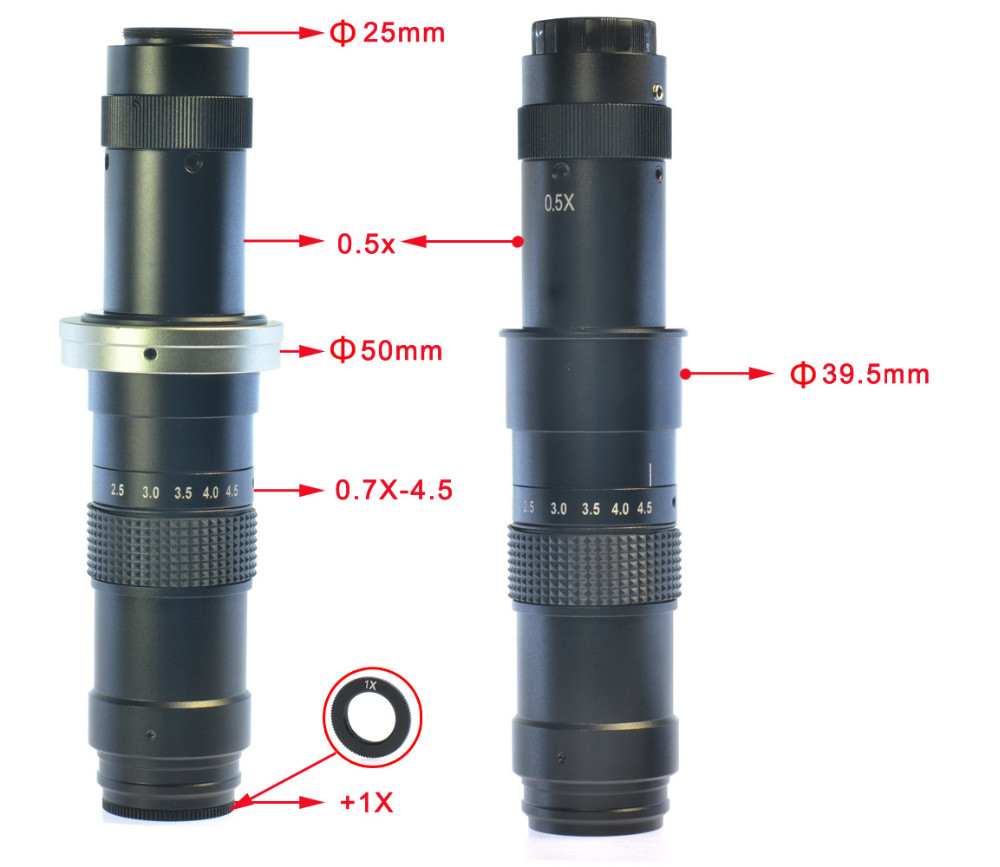

Working distance:W.D.95mm, holder diameterĪ¦28mm,
Focus Fine:any position focus of C/CS Mount
Iris Adj:high definition and high depth of focus
Large depth of field
with fine-tuning manual iris ring
Standard optional:0.5X CCD Adapter (Standard optional only 0.5X, if you want other size please contact with us )
Length: 160mm(L)
Ring: suit for 40MM / 50MM hold ring stand ( We will sent you a ring adapter for free )

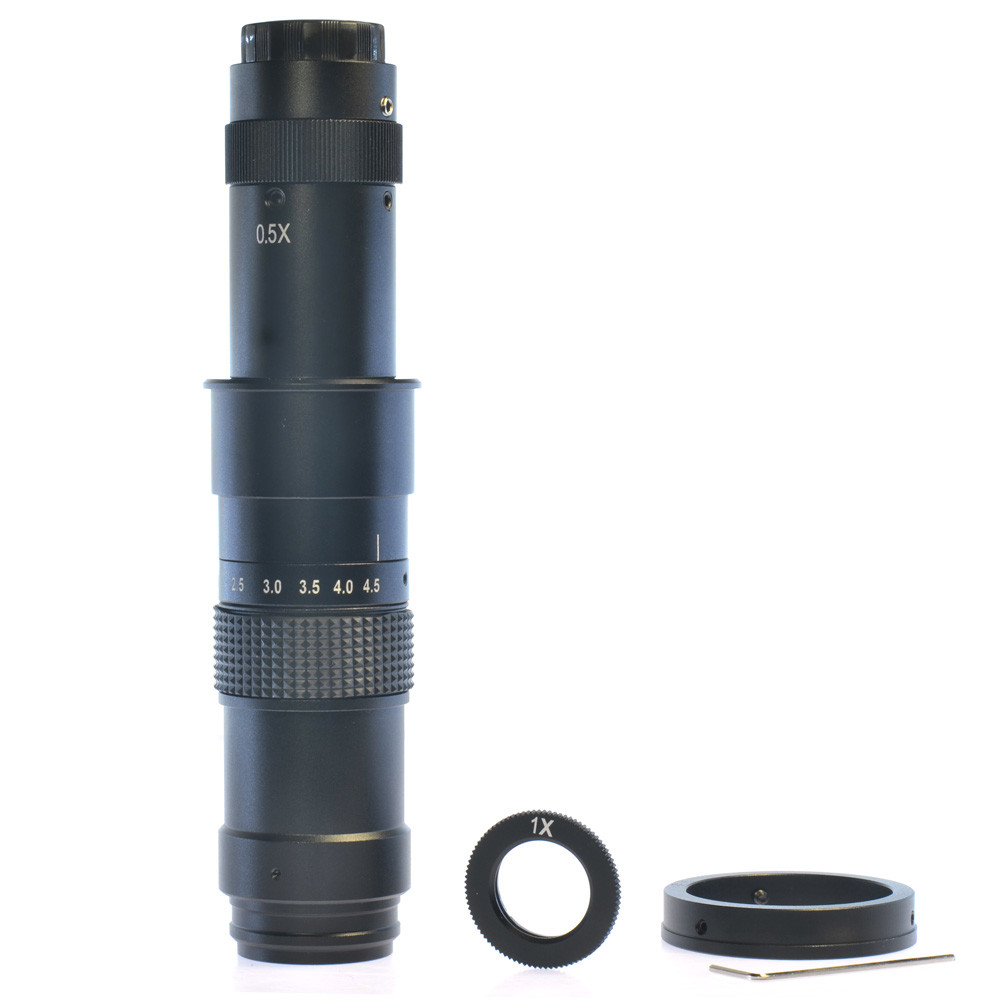

Package incluede:

1 x C-MOUNT Lens

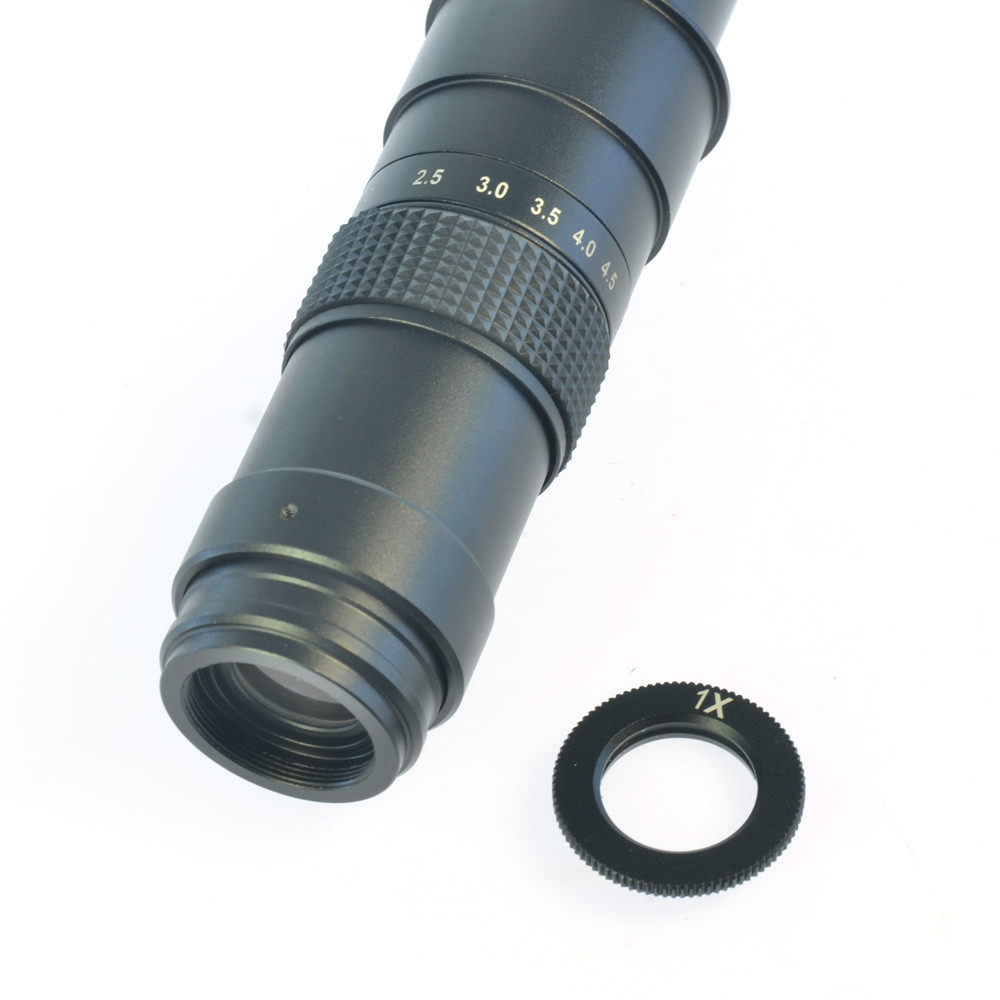

1 x 1X Lens
1 x 40mm to 50mm ring adapter
