Product Description

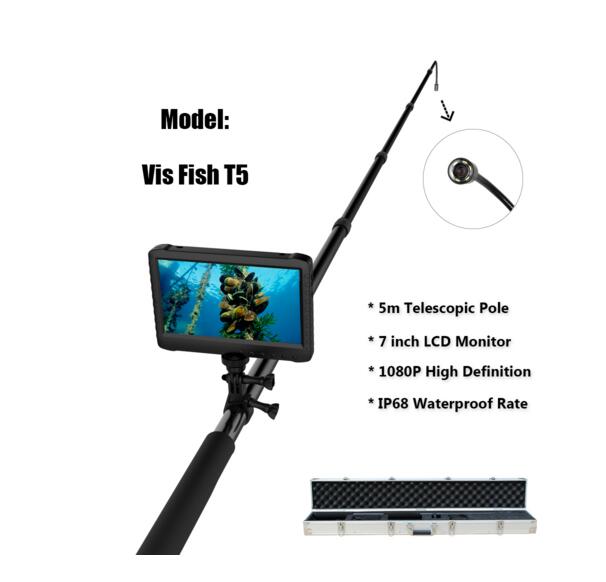

Telescopic Pole 1080P HD Underwater Video Inspection Camera with 7 Inch DVR Kit(Vis Fish T5)
There is 2 version for your option:
– Seafood Version: Vis Fish T5 (With LED lamps)
Suitable for sea cucumber, abalone, shellfish, crabs and other aquaculture;
– Fish Version: Vis Fish T5S (With IR lamps)
Applicable to all types of fish farming monitoring;
Point Features:
· 5MP HD Resolution for meticulous observation
· 5m adjustable telescopic rod

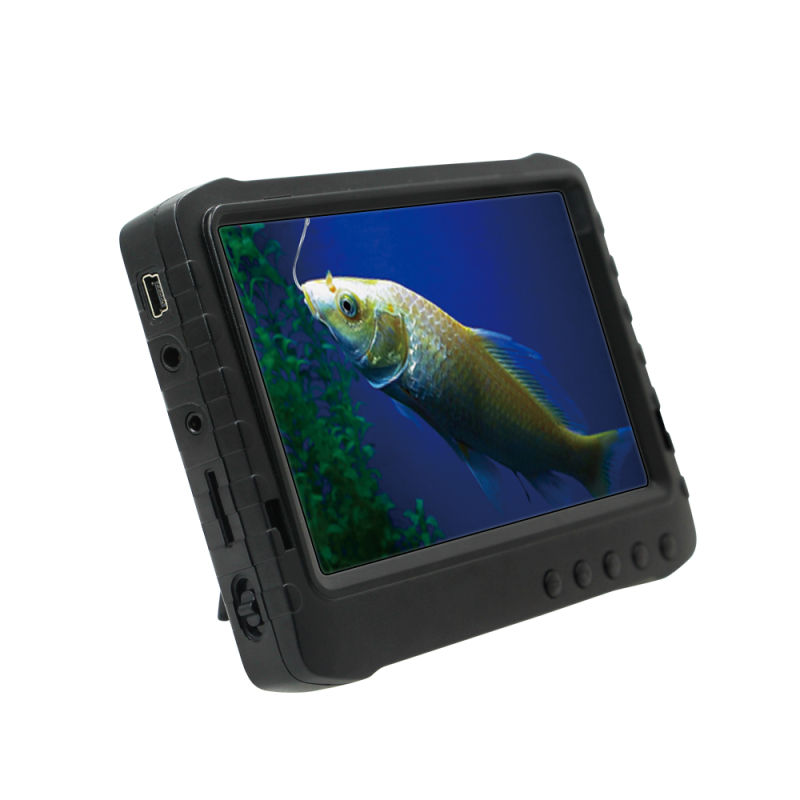

· 7 inch HD monitor for live monitoring:
· Long time underwater surveillance +Recording
Hold the 5MP HD Underwater Inspection Camera System to open the door to prosperity!
Main Features:
7″ 1080P HD mini under water inspection camera DVR system:
• HD 1080P 5.0 Mega digital camera.

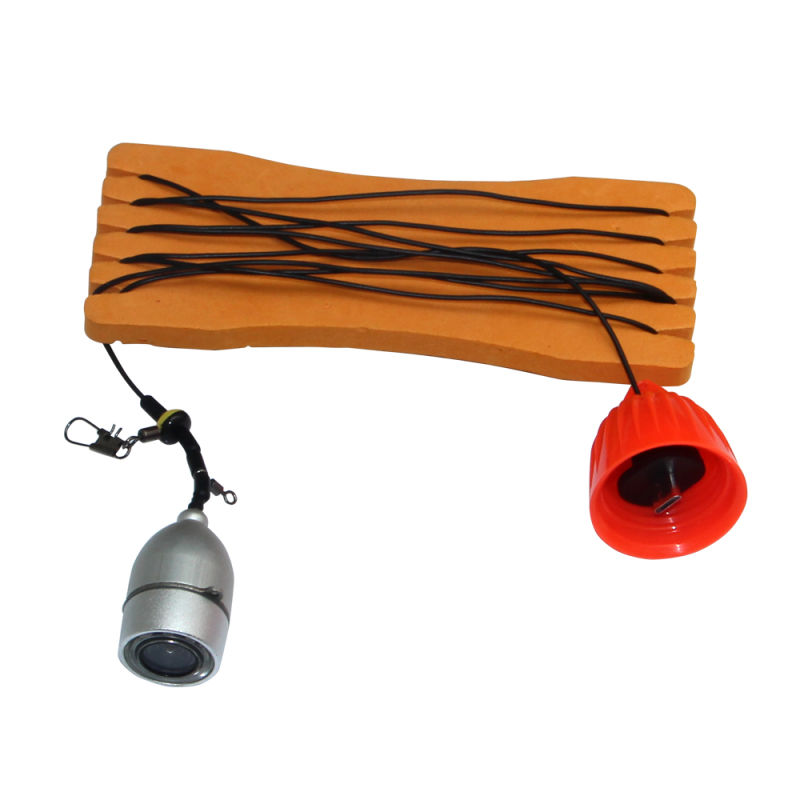

• Φ18mm mini camera with 6 IR/LED night vision.
• Waterproof Rate IP68.
• Support 64GB TF card.
• Support HDMI video output.
• Support H.264 Video Compression Format.
• 5000mah li-battery, 8 hours working time.
• 5m Telescopic Survey Pole for all-purpose usage.
• Top gradealuminum allay case
Excellent video and photo as iphone .
Application:
An inspection camera system is widely used in the following areas:
* The growth and activities of aquatic products;
* Feeding habits;
* Propagation conditions;
* Underwater epidemic conditions
* Aquaculture ( fish farming, raising sea cucumber , etc.)
* Underwater surveying, underwater operations ( such as checking the cage holes )
* Diving adventure
* Underwater engineering inspection
* Underground concept check ( such as drilling workover )
* Leisure vacation
* Fishing and so on
Specification:
| Mini camera | Optical Element | 1/3 CMOS Sensor |
| Optical Total Pixels | 5.0 Mega:3200(H)×1800(V) | |
| CMOS Sensor Size | 5.07mm(H)×3.38mm(V) | |
| Sensitivity | 0.2Lux/F1.2 | |
| Led lamp | 6pcs 8lm/pcs controlled on DVR | |
| Lens & View angle | 0.5mm F1.2 120 ° | |
| HD Video Output Interface | FPD-LinkIII | |
| Waterproof rate | IP68 | |
| Dimension | 18 x 28mm | |
| Cable(4 Cores High-Speed Line) | Diameter:4.0mm Length:6m | |
| Pole style | telescopic pole | |
| Pole length & Weight | 5m 0.9kg | |
| 7 inch Monitor |
HD Video Output | HDMI:1920* 1080;1280*720 |
| Video Storage Pixels(16:9) | HDMI:1920* 1080;1280*720 | |
| Video Compression Format | H.264 | |
| Video Storage | AVI | |
| HD Digital Video Input Interface | FPD-LinkIII | |
| Photo Format | JPG 5.0Mega :3200(H)×1800(V) | |
| Storage External SD card | TF card 1GB-64GB(Optional) | |
| 64GB recording time | 10-32 hours | |
| Operating System | Windows & Mac OS | |
| Ports | USB 2.0/AV-OUT | |
| Language | Multiple | |
| Voltage | DC :7-24V USB DC:5V | |
| Current(Monitor mode) | 600MA | |
| Current(Video mode) | 700MA | |
| AC Adapter | DC 12V 2A | |
| Built-in Battery | Li-battery 5000Mah | |
| Record time | ≥10hours | |
| Dimension: | 177mm x120mm x 20mm | |
| Weight | 350g |
Package Contents:
– 1 * 5m telescopic rescue camera
– 1 * 7 inch monitor
– 1 * HDMI cable
– 1 * Adapter
– 1 * User manual
– 1 * Aluminum Alloy case
