Product Description
Packing list:

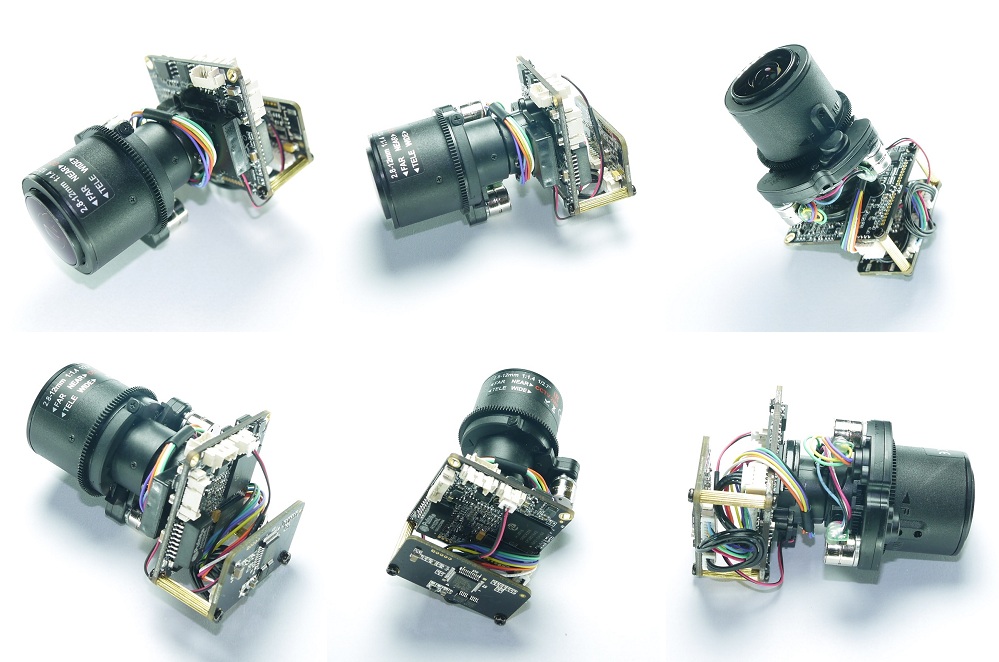

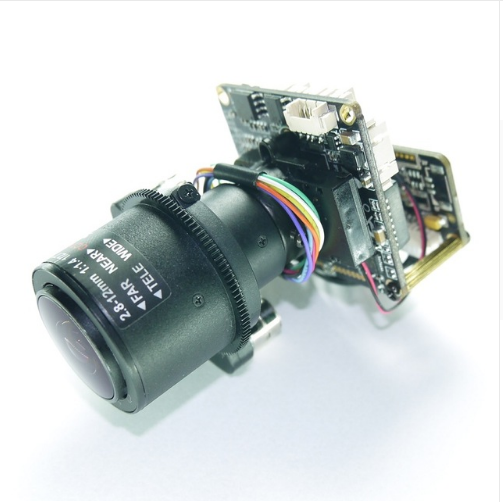

1 piece SONY 1/2.9″ IMX323 + Hi35116C CMOS module
1 piece 2.8-12mm Lens Motorized Zoom Motorized Focus
1 piece Motorized lens control module
1 piece IR-CUT
——————————————————————————————————————–
Not include other accessories
Not include CD
CD:PC Client / Mobile client / WEB ActiveX / mCMS User’s Manual Downloads(Please enter the following link Download Client)
Android Seetong Video Surveillance Client:
Support all topsee network products.
Note: users through the Android Phone/Pod/into the Google Play store, search ” Danale” download and install.
iPhone Seetong Video Surveillance Client:
Support all topsee network products.
Note: users through the iPhone/ipod/iTunes into the App Store, search ” Danale” download and install.
——————————————————————————————————————–
Features
1/2.9″ IMX323 Low light, CMOS sensor with DSP
Hi3516CV200 , standard single board 38mm*38mm , support D/N (IR CUT switch), with IR illumination .
Support photosensitive resistance signal. H.264 video coding ,support the main/sub-main stream , resolution can reach as 1920*1080, color with 0.1Lux @ F1.2, B/W with 0.01Lux @ F1.2.
Enabled with ONVIF2.4 protocol , access to different platform management.
Compatible with Dahua NVR/Hikvision NVR
Specifications
Model NO. IPS323AF
Hardware
Chipset HI3516C+IMX323
Illumination Color 0.01Lux;F1.2;B/W 0.01Lux;F1.2;
S/N ≥50db(AGC OFF)
Video coding
Coded format H.264 Baseline, Main Profile,High Profile coding
MJPEG coding
Resolution M-stream 1920*1080,1-25(30)F/S
1280*720,1-25(30)F/S
S-Stream 704*576,1-25(30)F/S;640*480,1-25(30)F/S
640*352,1-25(30)F/S;320*240,1-25(30)F/S
Video compressio 32Kbps-16Mbps continually adjust,Support CBR/VBR
Subtitle
overlay
Support channel name,Date,Code stream information overlay
Overlay place adjustable
Data transmission &storage
Data storage Video,picture,file
Storage way Manual,auto(cycle,fixed time,alarm switch,motion detection)
Alarm data
transmission FTP,E-mail,Browser,management software

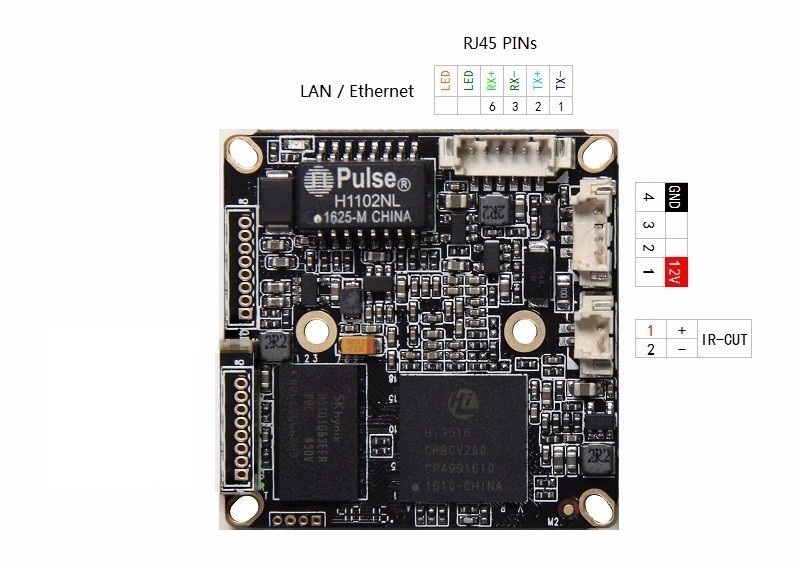

Protocol TCP/IP,UDP,RTP,RTSP,RTCP,HTTP,DNS,DDNS,DHCP,FTP,NTP,PPPOE,SMTP,UPNP
Wireless Protocol 802.11b/g/n,Support WEP,WPA,WPA2 Confidential Protocol
Browser Support IE6.0 and above, Device embedded Web Server
Support Max 16 user and interview
Phone Support Windows Mobile,iPhone,iPad,Android Platform
Normal Specification
Temperature -20ºC – +55ºC
Humidity 0% – 90%
Power DC12V/POE(-POE)
Consumption 2W(MAX)
Size 38(L)* 38(W)*15(H)MM(Without lens)
Weight 0.06kg
