Product Description
Packing list:

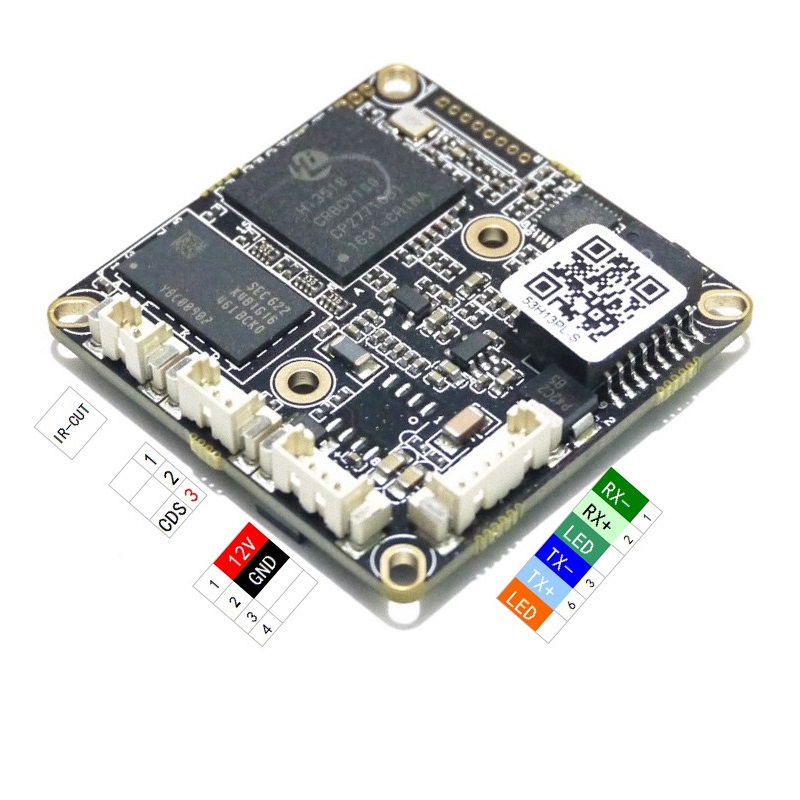

1 x CCTV HD 960P Network IP Camera Module
Without CD and network cable
CD:PC Client / Mobile client / WEB ActiveX / mCMS User’s Manual Downloads(Please enter the following link Download Client)
—————————————————————————————————————————————————————–
Android Seetong Video Surveillance Client:
Support all topsee network products.
Note: users through the Android Phone/Pod/into the Google Play store, search ” XMEye” download and install.
iPhone Seetong Video Surveillance Client:
Support all topsee network products.
Note: users through the iPhone/ipod/iTunes into the App Store, search ” XMEye” download and install.
—————————————————————————————————————————————————————–
Features:

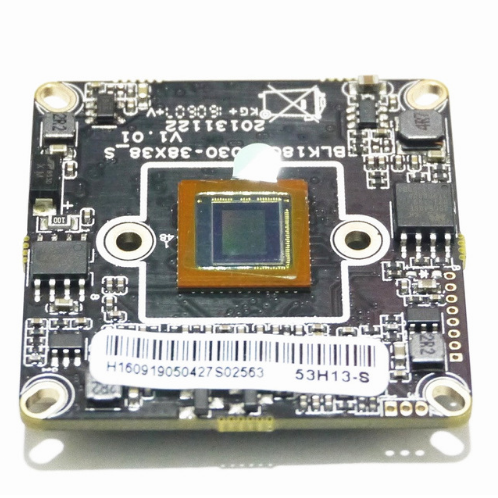

1.3M 1/3″AR0130 Low-illumination CMOS sensor;
Support 3D DNR, DWDR;
Support ONVIF;Support Third-party NVR;
Support for mobile video surveillance(iOS,android);
Support Web, CMS, platform management software MYEYE,Provide SDK ;
Support cloud service, network penetration, alarm information pushed to phone ,etc.
Electrical Specification:
System Structure
Embedded RTOS,dual-core 32bit DSP(Hi3518C),pure hard compression,watch dog;
image sensor
1/3″ AR0130 CMOS,support IR-CUT, support photo resistance signal linkage, CS lens;color 0.01Lux ~ F1.2,black/white:0.001 Lux ~ F1.2;
Video compression
H.264,support dual-stream,AVI;0.1M~8Mpbs variable;1~30f/s variable;
Image output
main stream:1280*960,1280*720;sub-stream:704*576;
network interface
1*RJ45 10/100M;support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP etc;
photo resistance
one photo resistance interface,support photo resistance signal links to IR-CUT
Features
Support WEB,OSD,live video transmission,motion detect and IO alarm,front-end storage/playback/download, MJPEG capture;united remote client monitoring sofaware,MYEYE;perfect SDK;
ONVIF
support
mobile monitoring
support multiple mobile monitoring(iPhone,Windows Mobile,BlackBerry,Symbian,Android)
Other functions
DC12V,3W(consumption),38mm*38mm;
Notes
Support POE(optional),B1-type tail-line(without BNC interface)
