Product Description

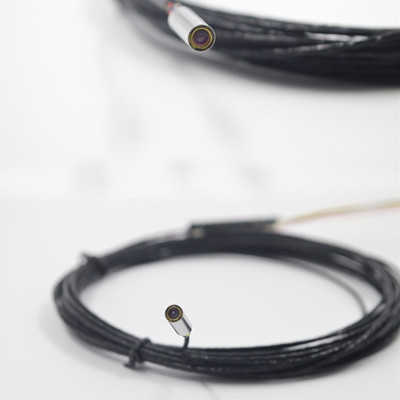

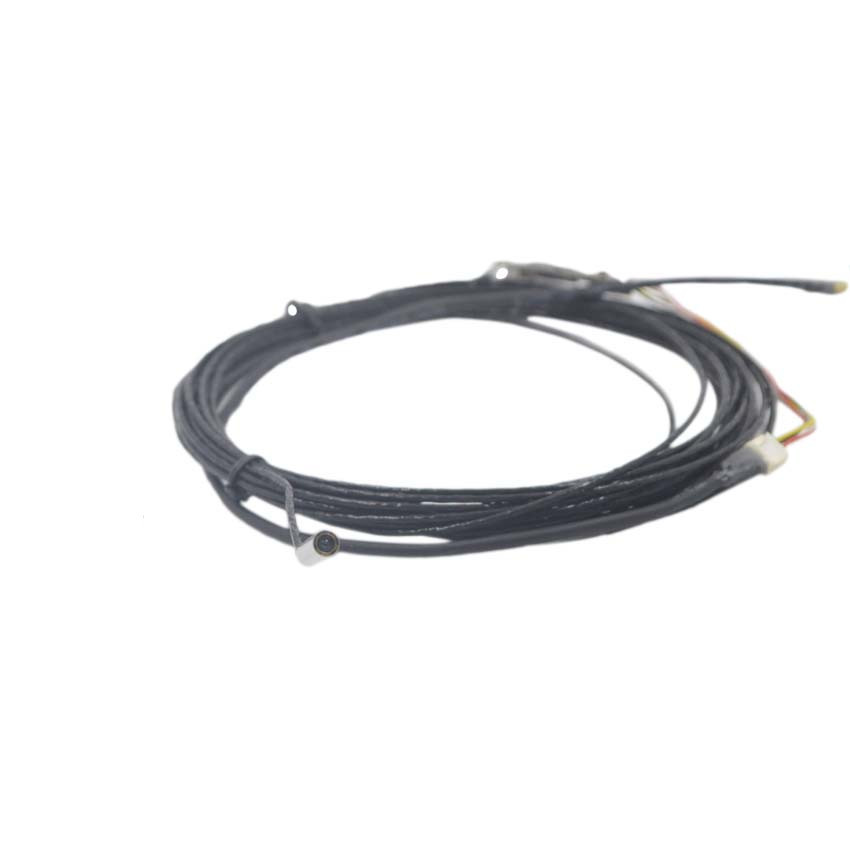

AV endoscope camera module 4.5mm diameter VGA mini waterproof camera module
TV System: NTSC / PAL
Power input: DC 3.3V
PowerConsumption: NTSC 95mA±5mA / PAL 100mA±5mA (w/o White LED)
Image device: Super Color VGA 640×480 Sensor
Effective pixels: NTSC 720(H)X525(V) / PAL 720(H)X625(V)
Sensor Scan Mode: Progressive Scan
Frame Rate: 30fps(N) / 25fps(P)
S/N Ratio: 37dB
Dynamic Range: 68dB
Light Source: Build in 6pcs 0402 White LED
AGC: Auto
Gamma Correction: 0.45
Video Output: Composite Video signal: 1.0Vp-p, 75 ohms
Lens View Angle(Fov): Fov (D) 80°
Lens F/NO: F3.8
Focal Length: Focus 1cm~10cm
Lens Construction: 2 plastic + IR cut + Cover Glass
TV Distortion: < 1%
Water Resistance: IP67
Operating Temperature: -10°C to +50°C
Operating Humidity: 30%~90%Rh
Dimensions: Camera size D4.5mm X L11.3mm / Main Board szie 10mm X L23.7mm
