Product Description

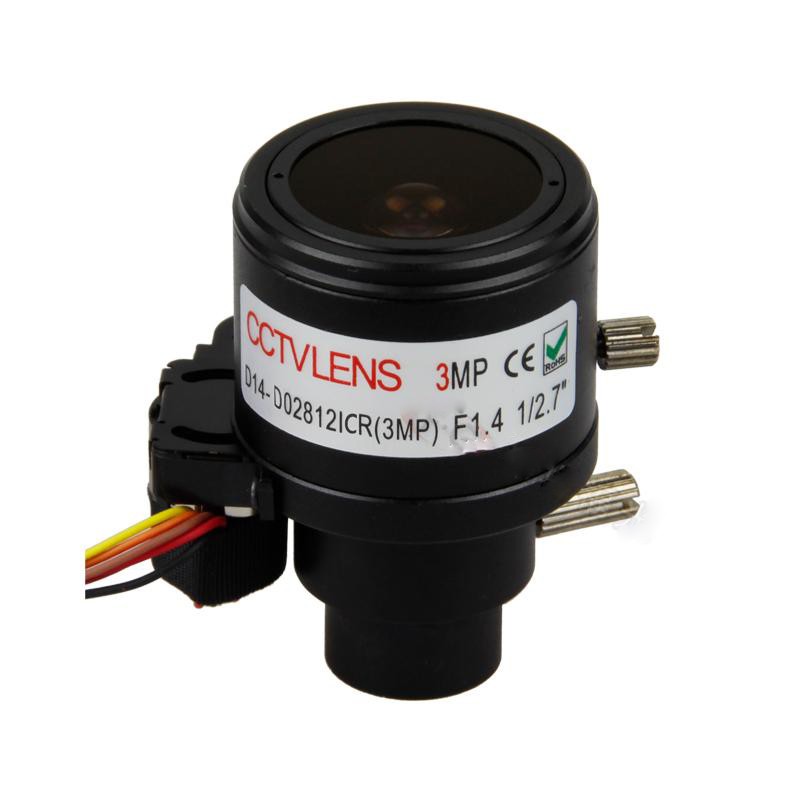

Model FG-D14VF2812D2ICR-3MP
Resolution 3.0MegaPixel
Image format 1/2.7″
Focal length 2.8-12mm
Aperture F1.8
Mount D14
Field Angle D×H×V(°) 1/2.7″ 1/3″ 1/4″
2.8mm 12mm 2.8mm 12mm 2.8mm 12mm
140 40 120 36 82.6 27.2
100 32 89 29 64 21.6
72 24 64 21.6 27 16.2
Optical Distortion 61%~4% 47%~3.4% 24.5%~1.85%
M.O.D. 0.3m
Dimension Dia43.9×41.7mm
Weight 30±2g
Flange BFL 13.5mm
BFL 6.9 ~ 14.4mm
MBF 6mm
ICR Yes
IR Correction Yes
Operation Iris DC
Zoom Manual
Focus Manual
Operating temperature -20C ~ +60C
Size tolerance(mm) 0-10±0.05 10-30±0.10 30-120±0.20
Angle tolerance ±2°
