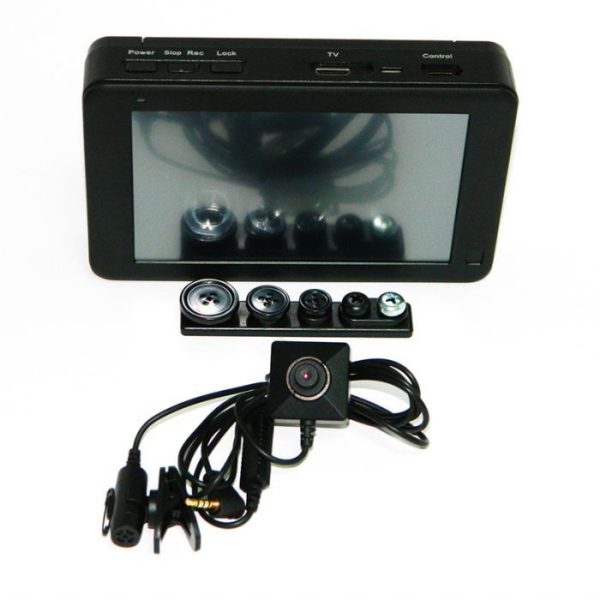

PV-1000Touch5U with BU-19

PV-1000Touch5U with BU-19

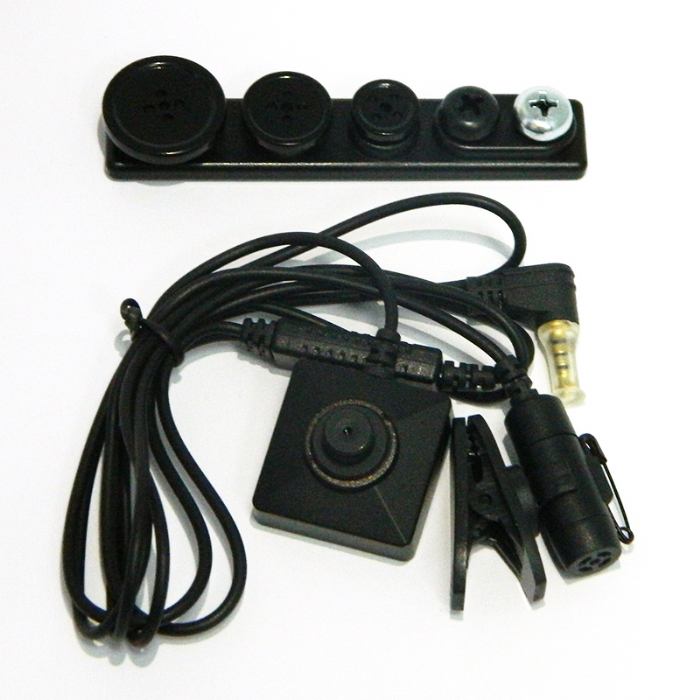

Product Description

The New BU-19 camera is Lawmate’s best spy camera when it comes to low light sensitivity. With a Min. Illumination of 0.005 Lux/30 IRE @F1.2 it will record in light circumstances where other cameras produce only a dark picture.

The camera comes with a 700 TV Lines resolution, is compatible with NTSC and PAL Video Systems, and has a 78 degree angle of view.

BU-19 Main Features:

High performance 1/3 inch SONY SUPER HAD CCD series sensor, making the resolution to 700 TV lines
Miniature size achieved by the evolutionary micro-sized PCB technology, making it smaller than using the 1/4 CCD sensor
Featured with much better performance by adopting 1/3 CCD sensor resolution, sensitivity & angle of field
Improved sensitivity in comparison with regular pinhole CCD cameras as low as 0.005 Lux F1.2
BU-19 Full Specifications:

Item Number: BU-18(NTSC) & BU-18(PAL)

Video System: NTSC & PAL

Picture Element: NTCS: (H)976x(V)494 / PAL: (H)976x(V)582

Resolution: (H) 700 TV Lines

CCD Image Sensor: Interline 1/3’’ SONY SUPER HAD CCD

S/N Ratio: More than 54 dB (ACG off)

Min. Illumination: 0.005 Lux / 30 IRE @ F1.2

Electronic Shutter: NTSC: 1/60~1/100,000; PAL: 1/50~1/100,000

A.G.C; +18dB Max

Video Output: 1.0V p-p Composite at 75 ohm

Audio Output: 2Vp-p(MAX) 10KHz ohms Impedance

MIC Sensitivity: Yes

Lens: 4.3 mm

Angle of View: 78 Degree

Power Supply Voltage: 5V+/-0.5V

Power Supply Current: 220 mA

Dimensions: 25(W)*22(H)*12(L) mm

Weight: 22g



Lawmate PV-1000Touch5U is a new upgraded PV-1000 DVR from Lawmate, just released.

This DVR now comes with a 500GB SATA HDD and USB cable connection while other features of the PV-1000 Touch5 have remained the same.

Previous generation Lawmate PV-1000 models introduced featured processor that offered HD quality recording, adjustable FPS, for the first time integrated HDD in mini DVR and various other advanced feature.

The new PV-1000 with integrated 500GB SATA HDD is capable of providing easily over 10 days of uninterrupted recording material right on the compact sized DVR. There is also 5″ screen that enables comfortable review of recorded video as well as easy to use touch screen commands.

PV-1000 Touch5U supports 3.3V digital cameras with USB in port as well as the standard Lawmate 5V and 12V camera in option. The USB Cable solution provides faster connection with camera, which includes less camera latency and visibly faster low light adjustment. It will successfully power any compatible analogue camera as well as CMD-BU13LXU digital camera model.

Main features:
NEW!! Integrated 500 GB SATA HDD
5″ 800 X 480 touch screen
Recording resolution of up to 1080p
5V and 12V powered camera support
Integrated 4400ma BA-4400slim battery
Compatible with Lawmate CMD-BU13LXU camera
Multiple resolutions and adjustable FPS
Multiple recording modes
Multiple levels of password protection
Integrated microphone

Basic specifications:

Resolution Mode: 7 recording modes from 320 * 240 to 1920 * 1080 @ 1fps – 30fps for each resolution mode
Display: 5 ” TFT LCD
Memory Type: Built-in 2.5″ 500 GB SATA HDD + SD Card (up to 32GB SDHC)
Battery Lifetime: 120 minutes (with DC 12V camera) and 180 Minutes for DC 5V sensor
Dimension: 142 * 88 * 30 mm
Weight: 317 g (w/o Battery)
Full specifications:

Display: 5″ TFT RGB 800X480 Colour TFT LCD
Video Input: NTSC/PAL Auto-Detection
Recording modes: Standard / Motion Detection / Schedule / Pre-Event / Pre- Motion mode
Resolution modes: 320×240/640×480/720×480/1024×768/1280×720 /1280×960/1920×1080
Max Resolution: Above 720P (1280×960) & 1080P (1920×1080)
Memory Type: Built-in 2.5”500GB SATA HDD & SD Card (up to 32GB SDHC)
Frame Rate: 1,5,15,25,30 fps Adjustable
DC5V to Camera: DC5V 320 mA Max
DC12V to Camera: DC12V 180mA Max (through optional remote switch)
PC Interface USB 2.0
Image Quality (Bit rate): At resolution of 720×576@25 FPS (PAL) or 720×480@30 FPS (NTSC) – High (5Mbps) / Medium (3.3Mbps) /Low (2.5Mbps) Adjustable
Date/Time Table: YYYY/MM/DD, HH,MM,SS
Frame Counter Stamp: Yes
Picture format: Baseline JPEG
Power Consumption: 5V / 2.5A
Battery Type: DC 3.7V / 4400mA Lithium battery
Battery Lifetime: (A) 2.5 mm Analogue DC 5V Sensor – 180 min
(B)Mini HDMI Analogue DC 12V Sensor – 120 mins
Dimensions: 142 X 88 X 30(mm)
Weight: 317g
PV-1000Touch5U Feature focus:

Integrated 500 GB SATA HDD

PV-1000 Touch comes with an improved capacity SATA HDD disk. 500 GB HDD will store over 130 hrs of HD quality recording or over 300 hrs of 30 FPS VGA recording on the DVR.

With as much recording time available, PV-1000 Touch5U is more than ever able to achieve tasks that no other DVR of similar size can while still remains small to fir and hide where large size DVRs are not able to.

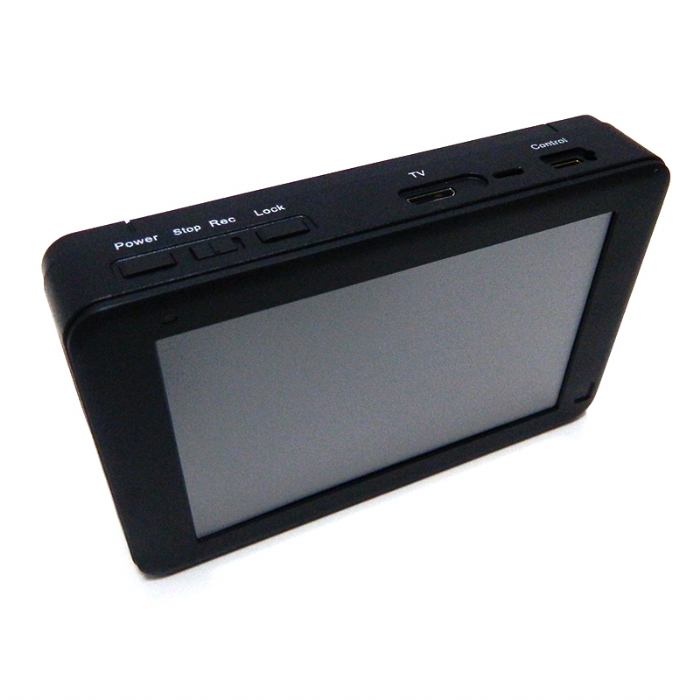

5″ LCD touch screen

While the first models of mini DVRs usually did not feature screen but the recorded video was observed on a separate monitor or a nearby PC, and later models featured fairly small screens, PV-1000 Touch finally provides a decently large integrated LCD screen.

Besides providing comfortable touch screen control on a 5″ touch screen with a resolution of 800 x 480 it is also big enough for a user to notice all the necessary details in 1080p video which is even easier to do with the also available on screen zoom function.
High level of security

Lawmate mini DVR PV-1000Touch5U like the previous generation model allows setting up USB access and power on passwords and unlike many other mini DVR devices that use only SD card for memory storage it will make unauthorized access to your recordings much harder to achieve.

If a user does not have password access to the device, it is necessary to physically dismantle the DVR and use forensic hardware to gain access to the recorded video and audio evidence on the HDD. Such action would surely leave visual marks on the DVR and could not be done covertly.

Take in account the reset button does not reset the passwords.

Level of integrity for video / audio recording is also preserved with an option to attach to the video recording the following:
Frame counter
Time and date
Device ID
Unique ID of the person using the device
Thus making the recorded video very difficult to temper with.
Multiple recording modes including innovative Pre-event and Pre-motion recording modes

Basic modes that PV-1000 provides are on-click recording through preview mode, time scheduled recording set-up in advance and motion detect recording (with the help of visual grid if needed).

The innovation that Lawmate has brought to improve existing recording modes are Pre-event and Pre-motion recording modes that will keep up to 15-30 seconds buffer of your recordings at all times before the recording is started.

What is the purpose of that?

In Pre-event mode although event that you wanted to record might have already passed the recording function can be manually triggered afterwards and the video buffer of the event that happened 15-30 seconds ago will be saved. When things happen fast and reaction needs to be in an instant that is where a Pre-event mode can become really useful.

Pre-motion mode works in a similar way and will record events that preceded motion detect trigger. It will allow the DVR to make sure motion detect always records whatever happens in the scenery regardless if lower light conditions might delay motion detect trigger from starting recording in an instant.
Easy to use

On screen virtual buttons allow quick and easy sliding through many menus of the device firmware, allowing the user to make quick adjustments to recording modes and other device settings.

Besides virtual, several physical buttons are also available to smoothen up the user experience. There is a switch to lock the device to prevent accidental touch screen interruptions, power on / power off, and start / stop recording switches.

IR controller comes with the device and will allow you to control it without maintaining visual contact with the device.

Optional wired remote controller is also available and is ordered separately.
5V and 12V analogue and 3.3V digital camera support

Lawmate PV-1000 Touch supports and powers wide variety of cameras. On the recorder there are available 5V 2.5 inch analogue and USB digital jack while on the optional remote controller there is a 12V 3.5 inch analogue jack entry.

Most spy cameras on the market are 5V and 12V analogue cameras and will be powered by the PV-1000 Touch.

Most other cameras will work with the PV-1000 Touch but will not be powered. An exceptions are digital cameras from other producers due to current lack of a digital video camera standard across the brands.
