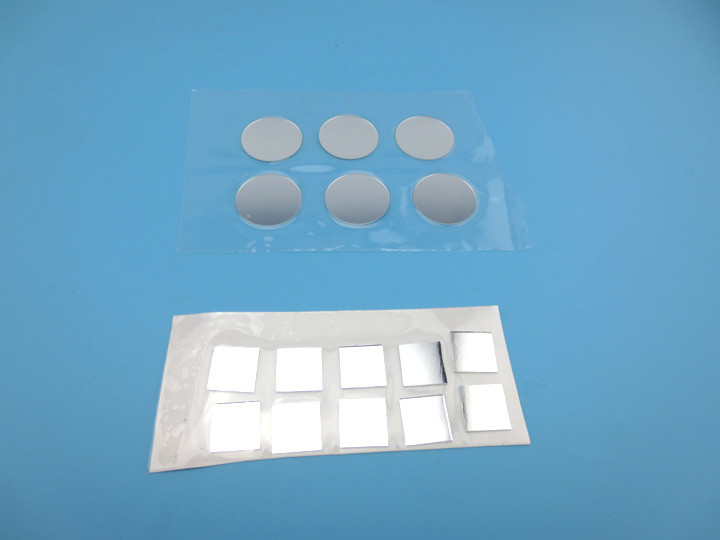

850nm narrow band pass filter, board lens IR cut filter, square/round 850m narrow band filter

all types of lenses. CCTV lenses, Megapixel lenses, machine vision lenses, varifocal lenses, pinhole lenses, monofocal lenses

Product Description

850nm narrow band pass filter, board lens 850nm IR-Cut filters, square or round 850nm narrow band filters

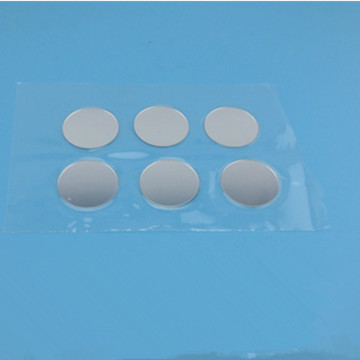

Round 850nm narrow band filters
Dimension: Φ8.0×1.0mm, Φ8.0×0.55mm, Φ20.0×0.55mm, Φ25.0×0.55mm
Center wavelength: 850 + – 10nm,
Half bandwidth: 30nm
Peak transmission rate: 86%
Cut-off depth: <1%
Color and Material: mirror glass

Dimension: Φ10.4×1.0mm
Center wavelength: 850 + – 5nm,
Half bandwidth: 30nm
Peak transmission rate: 86%
Cut-off depth: <5%
Color and Material: mirror glass

Square 850nm narrow band filters
Dimension: 4.5×4.5×0.55mm, 6.2×6.2×0.7mm, 6.2×6.2×0.55mm, 8.2×8.2×0.55mm, 10.0mmx10.0mmx0.55mm, 14.0×14.0x1.0mm, 86.0×86.0x1.1mm
Center wavelength: 850 + – 10nm,
Half bandwidth: 30nm
Peak transmission rate: 86%
Cut-off depth: <5%
Color and Material: mirror glass
