Product Description
This is a great transmitter and a receiver for both video and audio ;
It allows you to transmit video and audio to one location to another, it`s good for home and office use ;
Microwave anti-interference performance well ;
This machine sound/video signal adopt the microwave transmission means with 1.2G frequency;
Transmitter description:
Transmit Power: 6000mW
Working frequency: 1.2G (1080mhz -1120mhz -1160mhz -1200mhz )
Working voltage: DC12V
Operating Current: 900mA
Body product:83*58*18(mm)
Weight: 150g around
Size : 60X45x20mm
Channel Selection: 4-channel audio and video synchronization
Transmitter Distance: (open air and no interference ) up to 500m- 1.5 km around ( factory data for reference ). If you need them to work with more longer distance , you shall consider to add more powerful antennas for transmitter and receiver..
Receiver description:
Working band: 1.2G (1080mhz -1120mhz -1160mhz -1200mhz )
Body product: 115 * 80 * 21mm
Weight: 126g
Channel Selection: button to select
Receiving Mode: Manual receiver
Operating voltage: 12V
Operating Current: 800mA

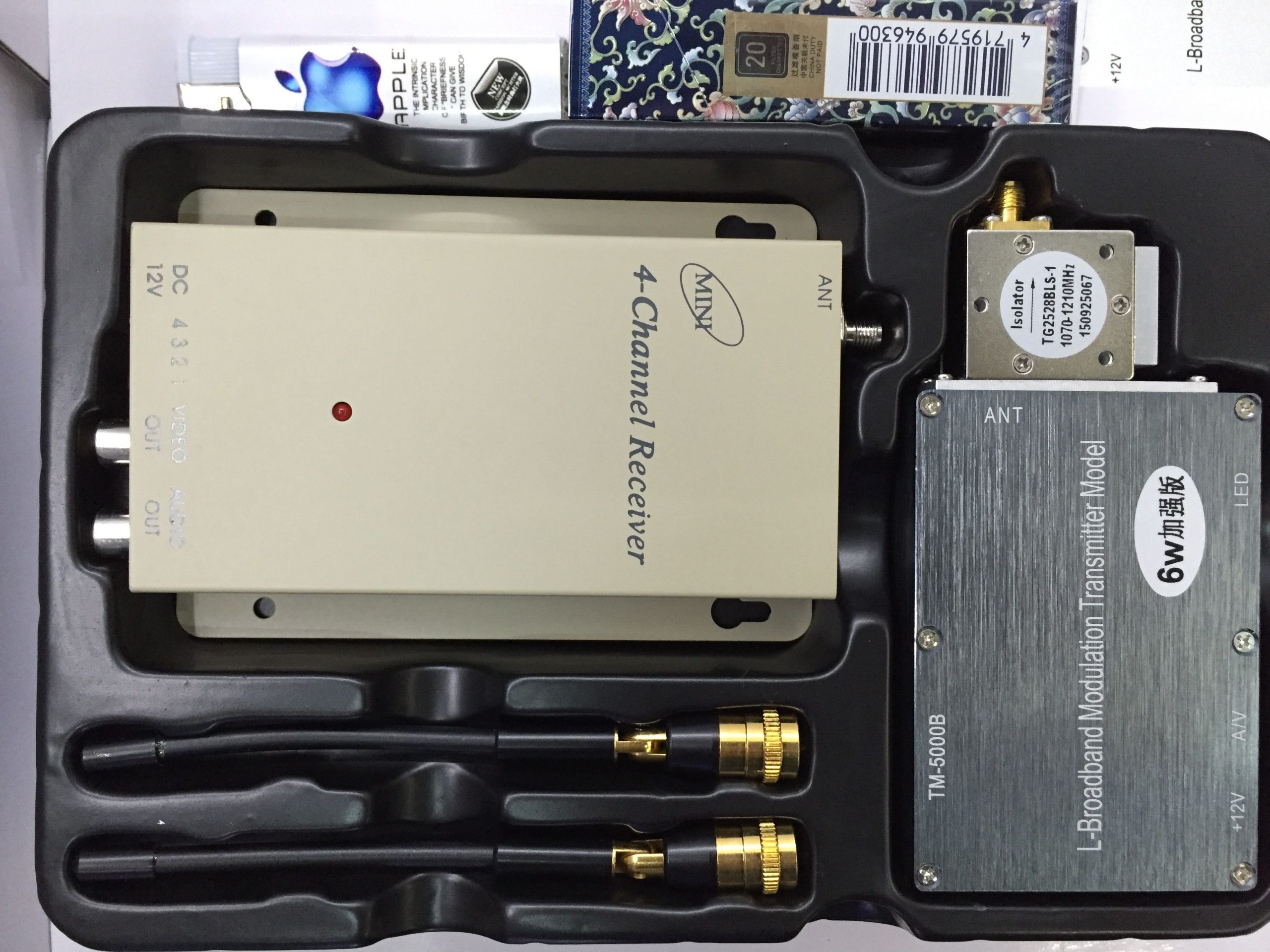

Package including :
1x 4 Channels AV Wireless Receiver
1x 4 Channels Wireless AV Transmitter
1x AV Cable for Receiver
1x AV Cable for Transmitter
1x 1.2G Antenna for Receiver
1x 1.2G Antenna for Transmitter
2x DC adapter for Transmitter and receiver each
NOte :
1. the tramsmitting distance will be different according to your using conditions .
2. The transceiver will become HOT after power on ,when you buy means that you can accept it .
If you need antenna for enlarging working distance :
