550TVL 1/3 SONY CCD Ultra-Mini 3.7mm SPY Screw Lens Hidden Camera

Product Description

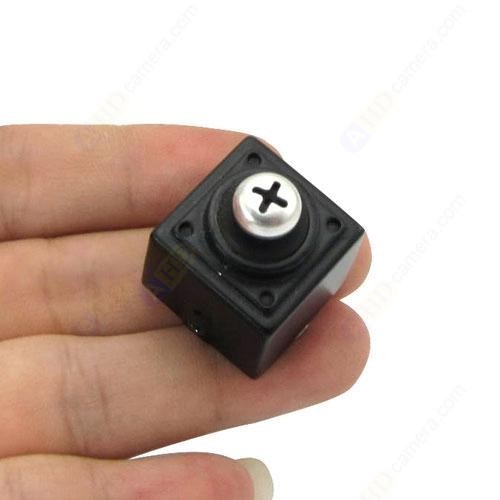

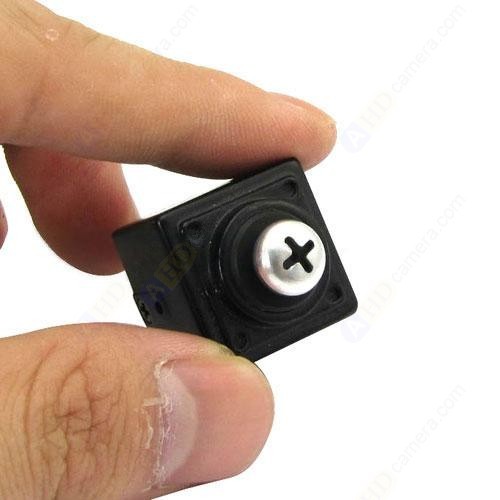

This is a 550TVL 1/3 SONY CCD ultra-mini pinhole camera. 3.7mm screw camera. Usually used in the hidden spot within family or office. DC12V Power supply. Non water-proof.
Features:
Mini high resolution camera
1/3″ Sony Ex-view CCD
550TV Lines, 0.01Lux
SONY DSP
Mini size
good image in low light conditions
Low Current Frequency, only 80mA, solve the hot problem
IR sensitive
3.7mm screw camera
Note
This item has no power supply provided. It is made covert, and the imaging would be affected for the design of screw around the brink of lens. Please think over before purchase.
This is a hidden 3.7 mm wide angle screw lens, there will be dark angle in the image corner.
Customers Who Bought This Item Also Bought
Specifications
Image Device
1/3″Sony Ex-view CCD
Horizontal Resolution
550 TV Line
Minimum Illumination
0.01 lux
Lens
3.7mm screw lens
Number of Pixels
PAL: 752(H) x 582(V),NTSC: 768(H) x 492(V)
Scanning System
PAL: 625 Lines, 50 Frames/Sec; NTSC: 525 Lines, 60 Frames/Sec
Sync System
Internal Synchronization
Video output
1Vp-p 75 Oms, Negative
White Balance
Auto
S/N Ratio
More Than 48dB (AGC off)
Gamma Characteristic
0.45
Electronic Shutter
PAL : 1/50~1/100,000 Sec; NTSC : 1/60~1/100,000 Sec, auto
Power Consumption
12V±10%DC, 80mA
Operation Temperature
-10C ~ + 50C, RH 95% Max
Storage Temperature
-20C ~ + 60C, RH 95% Max
Housing
Black
Dimension
22 x 27mm
Package

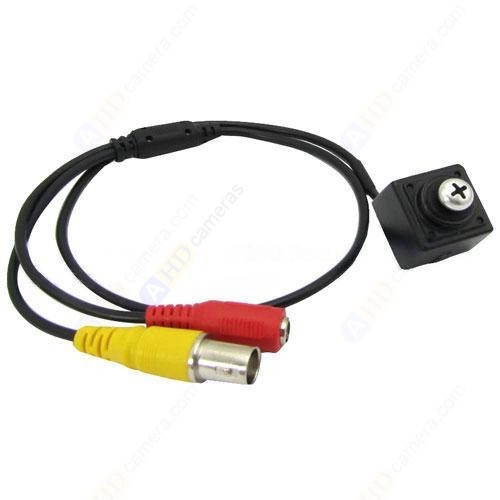

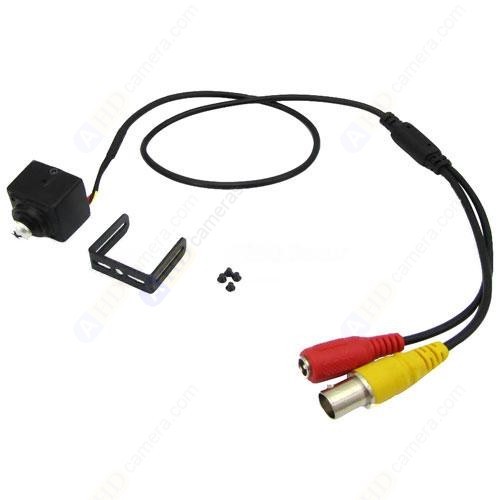

1X Camera
1X Cable
1x Bracket
