Product Description

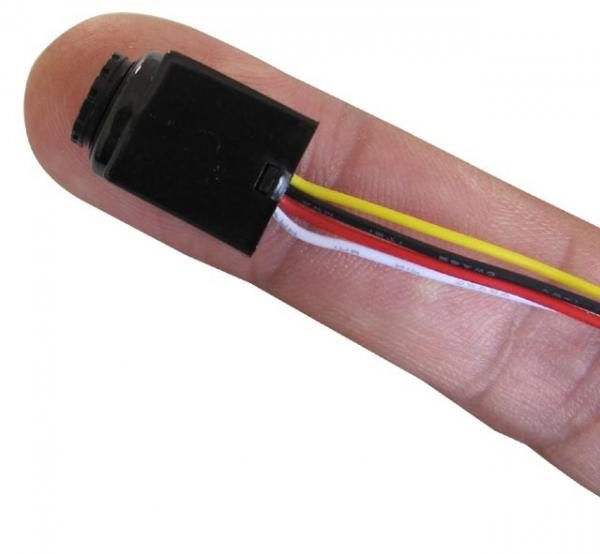

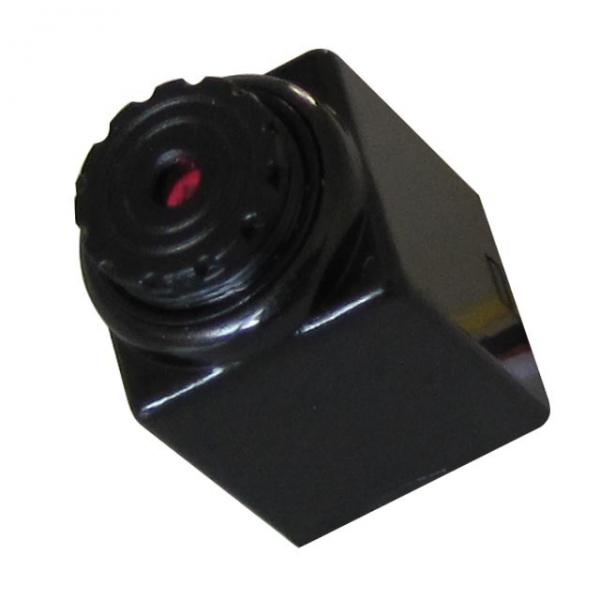

520TVL Smallest FPV Camera 2g Mini CCTV Camera with 0.008LUX Night Vision
Features & functions:
- It’s an ultra small high definition housed CCTV camera with excellent night vision.
- Size is 11.5X11.5X17mm only, Weight is 2g! Ready housed camera is very convenient & easy to install and conceal.Minimum illumination is 0.008lux, which can view clearly in almost complete darkness.90degree wide view angle provides broad surveillance field.
- Full TV system. Applicable worldwide.
- Use for Home and Business Security, Shops, Pubs and Restaurants, Building Sites, Warehouses, Boats, Marine Use, Sports use, Wildlife, Farms, Stables and Kennels, Surveillance and Covert use, Nursery and child care, Firearm
Specification:
|
PICK UP ELEMENT
|
Single chip 1/3 CMOS
|
|
|
SYSTEM
|
NTSC
|
PAL
|
|
NUMBER OF PIXEL
|
NTSC:656(H)×492(V)
|
PAL:786(H)×576(V)
|
|
IMAGE SIGNAL PROCESS
|
Digital Signal Processing System
|
|
|
SENSOR DIMENSION
|
4.75mm(H)×3.55mm(V)
|
|
|
HORIZONTAL RESOLUTION
|
Approximately 520TV Lines
|
|
|
SCANNING SYSTEM
|
2:1 Interlace
|
|
|
SENSITIVITY
|
0.008Lux/F1.2
|
|
|
LENS & VIEW ANGLE
|
0.5mm F2.0 /55 °
|
|
|
S/N RATIO
|
52dB
|
|
|
ELECTRONIC SHUTTER
|
OUT (1/60 S TO 1/100000 S)
|
OUT (1/50 S TO 1/100000)S
|
|
AUTO GAIN CONTROL
|
OUT
|
|
|
WHITE BALANCE CONTROL
|
OUT
|
|
|
BACK LIGHT COMPENSATION
|
OUT
|
|
|
VIDEO OUT
|
1.0V p-p/75ohm
|
|
|
AUDIO OUT
|
1.0V p-p/1Kohm
|
|
|
SIZE (L x W x H)
|
11.5mm x 11.5mmM x 17mm
|
|
|
WEIGHT
|
2g
|
|
|
WORK CURRENT
|
72mA
|
|
|
POWER REQUIREMENT
|
DC 3.3V-6V
|
|
|
OPERATING TEMPERATURE
|
– 10° C ~ +50°C ,less than 90% RH
|
|
|
Connection
|
PIN1-Red DC5V PIN2-Black GND PIN3-Yellow VIDEO OUT PIN4-white AUDIO OUT
|
|
