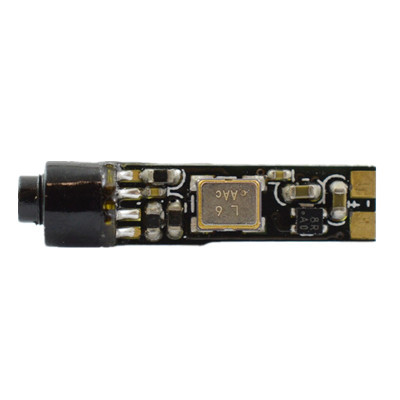

3.5mm wide endoscope camera module, 1/18″ CMOS, 320×240, DC3.6V

Product Description

This camera is the world’s smallest camera, using 1/18” CMOS chip. The camera outside diameter is only 3.5mm, able to configure wide-angle lenses and telephoto lenses to observe objects at close range.
The camera is suitable for industrial video endoscope, pipe probe endoscope, vehicle detection endoscope, cylinder testing, video fishing camera, underwater camera, ENT endoscope, intraoral endoscope, medical endoscope, throat endoscope, etc.
The main advantages of this product are: small size, low power consumption, clear imaging.

Sensor: 1/18” CMOS
Horizontal Line: 200TVL
Signal System: NTSC
Effective Pixel: 320 × 240
Electronic Shutter(AES): 1/60S – 1/170000S
AGC: Open
SNR: ≥42dB
Gradation: 10th rank
Gamma: 0.45
Illumination: > 0 Lux / F3.0 (0 Lux when the LED is on)
Composite Video Output: 1.0Vp-p 75Ω
Lens: F3.0, 54°
Focal distance: 10~50mm

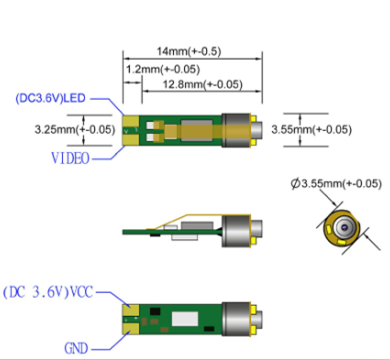

Module size: 3.9mm*15mm
Light: 2PCS white LED
Power: DC 3.5V~3.6V, less than 350mW
Operating temperature : -10 ℃ ~ 60 ℃ RH95% Max
