Product Description

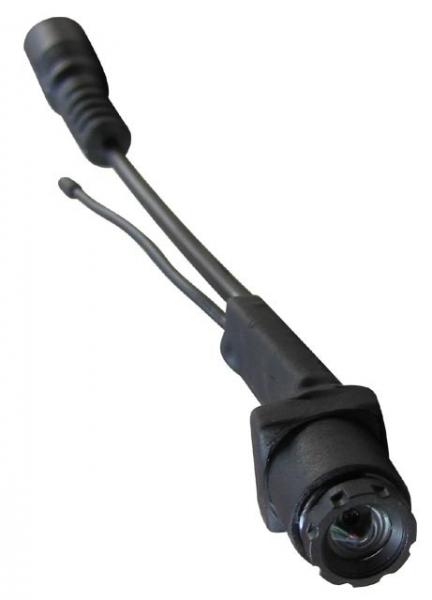

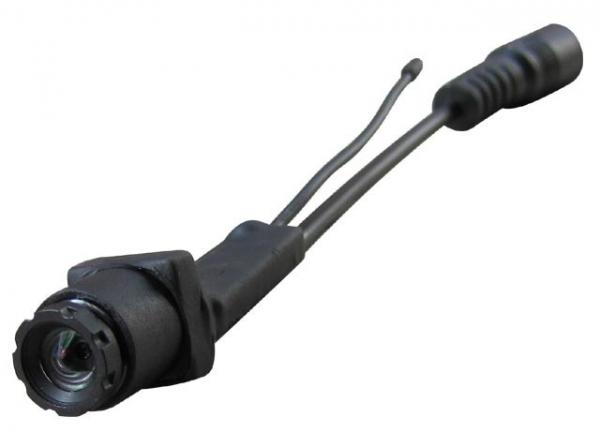

8g 0.008LUX Wireless Mini Camera With 100m Transmitter Rang , 25mW Power
Introduction:
KP-TE60A adopts no-interference 5.8G frequency, which transmits 100 meters range. Moreover, it uses the high sensitive imaging device, which brings superior imaging capabilities. Its size is smaller than finger, which is suitable to install it into narrow room. Extremely low illumination(0.008lux), broad view angle(90deg),small size, wireless transmission, tiny weight(8g), continuous working(AV power supply), and easy installation . It is a good helper for home monitoring and burglar.
Main Features:
1. No-interference 5.8G frequency, up to 24 channels for choice;
2. Tiny size (smaller than finger);
3. Tiny weight (only 8g);
4. 0.008LUX super low illumination, which can see clearly under dim light;
5. 90° and 50° view angle for your choice;
6. Low power consumption assures the long time working life;
7. 25mW transmitting power, which leads 100 meters wireless transmission range.
How to use:
Connect it with power supply, it starts to work.
At the same time, power on wireless receiver and set it in the same channel with camera.
Then it starts to receive/record real time audio & video.
Note: This camera has one working channel. Please select the model with your requested frequency;
SPECIFICATION:
| Working frequency | G1-within 5.8G | CH1: 5865MHz; CH2: 5845MHz; CH3: 5825MHz; CH4: 5805MHz.
CH5: 5785MHz; CH6: 5765MHz; CH7: 5745MHz; CH8: 5725MHz |
Working Channel: 1 of 24 | |
| G2-Beyond 5.8G | CH9: 5705MHz; CH10: 5685MHz; CH11: 5665MHz; CH12: 5645MHz.
CH13: 5885MHz; CH14: 5905MHz; CH15: 5925MHz; CH16: 5945MHz |
|||
| G3-Within 5.8G | CH17: 5733MHz; CH18: 5752MHz; CH19: 5771MHz; CH20: 5790MHz.
CH21: 5809MHz; CH22: 5828MHz; CH23: 5847MHz; CH24: 5866MHz |
|||
| Antenna | External antenna | |||
| RF OUTPUT POWER | 25mW | |||
| TRANSMISSION RANGE | 100 meters | |||
| SENSOR DIMENSION | NTSC: 720(H)×480(V) | PAL: 720(H)×576(V) | ||
| HORIZONTAL RESOLUTION | 480TV Lines | |||
| SENSITIVITY | 0.008Lux/F1.2 | |||
| LENS & VIEW ANGLE | 0.5mm F1.2 / 90 °(TE60A) 0.5mm F1.2 / 50 °(TE60B) | |||
| SIZE(L x W x H) | 39.5mm x 10.5mm x 10.5mm(TE60A) 33.0mm x 10.0mm x 10.0mm(TE60B) | |||
| WEIGHT(g) | 8g | |||
| WORK CURRENT | 230mA | |||
| POWER REQUIREMENT | DC 4V | |||
| OPERATING TEMPERATURE | – 20°C ~ + 50°C ,Relative humidity 85﹪ | |||
