2.4Ghz FPV Monitor 5'' Wireless AV Receiver Support 32GB Card For Helicopter
2.4Ghz FPV Monitor 5'' Wireless AV Receiver Support 32GB Card For Helicopter2.4Ghz FPV Monitor 5'' Wireless AV Receiver Support 32GB Card For Helicopter

2.4Ghz FPV Monitor 5” Wireless AV Receiver Support 32GB Card For Helicopter

Product Description

2.4Ghz FPV Monitor 5” Wireless AV Receiver Support 32GB Card For Helicopter





Description:

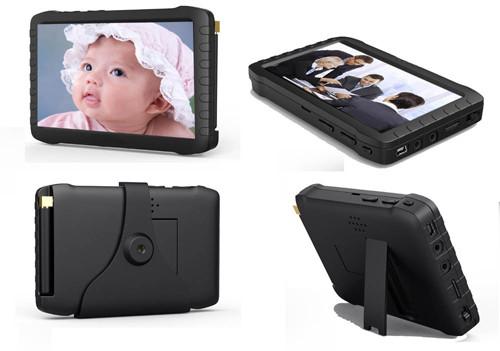

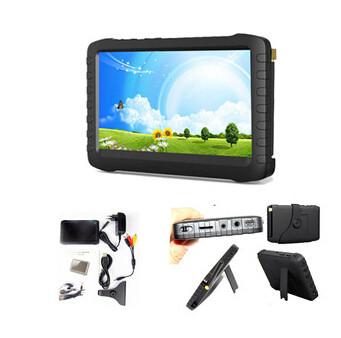

968H is a new generation portable mini DVR developed by our company.It supports both wireless and wired cameras. Not only this, it adds new function of photo, motion detect, loop recording, power saving (auto shutdown, auto off-screen), etc. This DVR is the ideal choice for security & protection, evidence & investigation, like police, household, sports, automotive industry, shops, etc.At the same time, with its stylish and high-end appearance, it also becomes the fashion choice of leisure goods.



Supports wireless & wired camera; photo function; motion detect recording; cycle recording; support memory up to 32G card.





Feature:

Mini size and portable recorder with fashionable & new design;
5-inch super large HD screen (800X480pix), which provides clear and smooth image;
Built-in 3200mAh high capacity Li-battery provides super long recording time up to 9.5 hours;
Supports storage up to 32G TF card, which records up to 32 hours;
Supports 2.4GHz & 5.8GHz wireless frequency;
8 channels auto/manual switch;
Folding hidden external antenna assures excellent wireless receiving;
Supports AV IN function: receiving signal from wired cameras;
Photo function: it can take, review & store pictures;
Supports intelligent motion detect video recording;
Overwrite: It supports loop recording, which can automatically overwrite when storage is full;
Seamless continuous record:No intermittent recording, it will not miss any detail and wonderfulness;
Support power-saving mode: automatic shutdown, automatic off-screen;
Equipped with full set of mounting brackets, it can be hand-held, stand desktop,

hanging on the wall, placed inside the car, different occasions;
It’s of high compatibility, which supports almost all computer operating system, including MAC;
Supports multi-language.





Specifications:





Items
Value
Wireless Receiving
( Choose 1 group of frequency from 2.4G/within 5.8G/beyond 5.8G)
2.4GHz –8 channels
CH1: 2414MHz; CH2: 2432MHz; CH3: 2450MHz; CH4: 2468MHz.
CH5: 2490MHz; CH6: 2510MHz; CH7: 2390MHz; CH8: 2370MHz
Within 5.8G—8 channels
CH1: 5865MHz; CH2: 5845MHz; CH3: 5825MHz; CH4: 5805MHz.
CH5: 5785MHz; CH6: 5765MHz; CH7: 5745MHz; CH8: 5725MHz
Beyond 5.8G—8 channels
CH1: 5705MHz; CH2: 5685MHz; CH3: 5665MHz; CH4: 5645MHz.
CH5: 5885MHz; CH6: 5905MHz; CH7: 5925MHz; CH8: 5945MHz
Sensitivity
-92dB
Receiving distance
100 meters
AV IN
TV system
NTSC / PAL
Output voltage
3.6-4.2 V
HD 5-inch LCD screen
Active area
108mm(W) X 64.8mm(H)
Resolution
800 X 480 Pixel
Luminance for LCM
200 cd/m2
Cape clear 5-inch LCD screen
Active area
118mm(W) X 62.8mm(H)
Resolution
480 X 272 Pixel
Luminance for LCM)
300cd/m2
Video
Resolution
720*576 / 640*480
Video compress
MPEG-AVI 30fps
Play format
MPEG-AVI
Audio
Frequency
20HZ-20KHz stereo
Earphone Output
Left: 20MW+ right 20mW [16O](suit to largest volume)
Speaker
1W
Format
JPG/JPEG
Storage
External SD card
TF card 1GB-32GB (optional)
32GB recording time
10-32 hours
1GB photos
15625pcs
Operating system
PC
Windows & Mac OS
Port
USB 2.0
Language
Multiple
Power
Voltage
DC 5V
Current (receiving mode)
660MA
Current (recording mode)
680MA
Current (recording with off-screen mode
340MA
AC adapter
DC 5V 2A
Built-in battery
Li-battery 3200mAh
Standby time
Wireless record
≥9.5 hours(off-screen); ≥5hours(on-screen)
Wired record
≥12 hous(off-screen); ≥6hours(on-screen) *LED camera not included.
Size (L x W x H)
131mm x 86mm x 18mm
Weight(g)
205g
