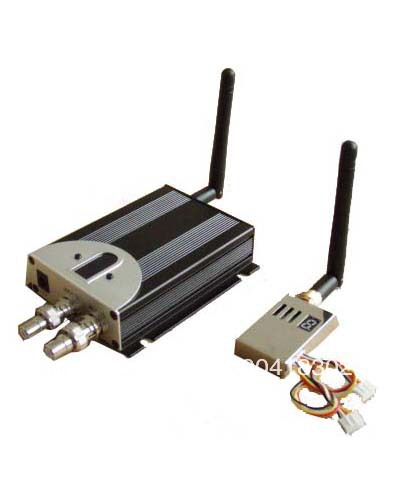

2.4GHz 1000mW 12 Channels FPV Reliable Transmitter and Receiver 2000m, transmitter distance audio and video transmitter kit

Product Description



FPV 0.9G to 2.4G 1W Relialbe Wireless AV Transmitter
With audio and video
Used for CCTV cameras for long range wireless surveillance
With reliable performance and lightweight
Also used in line of FPV system, UAV and RC airplanes/helicopters
Video and data signals at same time in cars of unmanned equipments

1. Transmitter Parameters:
Working Voltage: DC12V
Working Frequencies: 2.4G(8CH),1.3G(4CH),1.2G(4CH),0.9G(4CH)
Output: 1000mW
Dimension: 45*28*9mm
Weight: 24g (single transmitter)

2. Receiver Parameters:
Working Voltage: DC12V
Working Frequencies: 0.9G~1.2G(12CH) and 2.4G(12CH)
Dimension: 100*81*25mm
Weight: 141g

Installing:
A. The line has 5 plugs for connecting transmitter, camera and power supply. One of the line’s points connecting to transmitter, another has 4 plugs (red, yellow, white, black).Red plug connect DC 12V/1000mA,can also connect battery. White and yellow plug connect to camera’s audio and video apart. And black one connects camera’s power input jack.
B. Push the CONTROL button, can change the channel of receiver. Meanwhile, push it and last several seconds, can close the digital play and turn into saving power model. Then push it again, can replay. The function can be able to lock channel, so as to avoid mistaking operation.
C. Set the same channel with transmitter and receiver.

Package:
Transmitter
12 channel Receiver
Antenna
Video cable and transmitter connecting cable
Power adapter for transmitter, we don’t offer power adapter for receiver, please use 12V, 1500mA power adapter



deepwest video is the wireless security provider of choice for police departments, private investigators, UAV hobbyist, and federal agencies nationwide,
in large part due to our range of wireless video transmission devices. Our selection of state-of-the-art wireless video transmitters and receivers, wireless video links, antennas, and wireless sensors, are designed so you can place your cameras where you need them, without the concern of running video cable.

Our wireless video transmitters and video receivers make wireless video easy and reliable. Whether it is using highly reliable FM wireless video or 1.2 GHz / 2.4 GHz / 5.8 GHz, our wireless video transmitters and wireless video receivers are the perfect solution when it is difficult or impossible to run cables. A wireless transmitter and receiver can easily be used in conjunction with hidden video cameras. Our wireless video surveillance receivers are ideal for receiving video over long distances and save you time and frustration.

Whatever your wireless surveillance application or budget, we can find the right solution for you. Contact us! We can customize any solution to fit your requirements.
