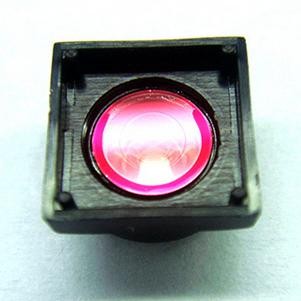

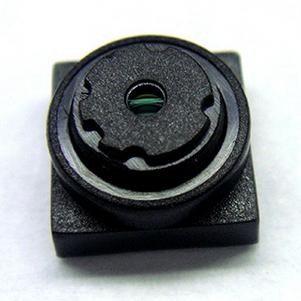

1/4″ 3.36mm 2Megapixel M6*0.35 mount non-distortion lens, Φ4.6mm F2.8 66degree lens

all types of lenses. CCTV lenses, Megapixel lenses, machine vision lenses, varifocal lenses, pinhole lenses, monofocal lenses

Product Description

max4.85mm 2Megapixel non-distortion M6*0.35 mount lens, Φ4.6mm, 3.36mm, F2.8, 66degree, 4P/4P+IR
Model: 14336MPF-M6
SENSOR FORMAT: Φ4.85mm
EFFECTIVE IMAGE DIAMETER: Φ4.6mm
FOCAL LENGTH(mm): 3.36
F.O.V.: 66°
RESOLUTION: 2 MP
DISTORTION: <1.0%
CHIEF RAY ANGLE: <24.6°
APERTURE: F2.8

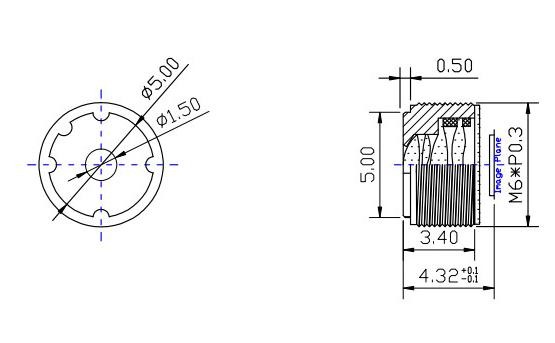

MOUNT(mm):M6x0.35
IRIS: Fixed
M.O.D.: 20mm
Flange Back Length(mm): 0.62
T.T.L.(mm): 4.32
LENS COMPOMEMT: 4P+IR(645nm)
