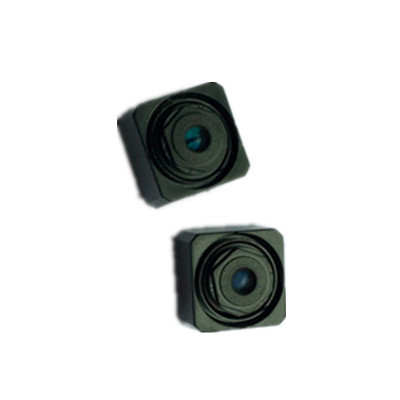

1/3″ 3.96mm 8Megapixel F2.2 M6.4 mount low-distortion lens mini lens

all types of lenses. CCTV lenses, Megapixel lenses, machine vision lenses, varifocal lenses, pinhole lenses, monofocal lenses

Category: CCTV Lens & Machine Vision Lenses Tag: Low-Distortion Lens

Description

Product Description

1/3″ 3.96mm 8Megapixel M6.4*0.25 mount low-distortion lens
MODEL 13396MPF-M6.4
SENSOR FORMAT 1/3″
EFFECTIVE IMAGE DIAMETER Φ6.15
FOCAL LENGTH(EFL) 3.96mm
F.O.V. 72°
RESOLUTION 8MP
APERTURE F2.2
OPTICAL DISTORTION <1.0%
CHIEF RAY ANGLE <25°
MOUNT M6.4X0.25
F.B.L. 0.68mm
T.T.L. 4.98mm
LENS CONSTRUCTURE 5P
IR 650nm +/- 10nm
Lens holder: 8.5mm*8.5mm
