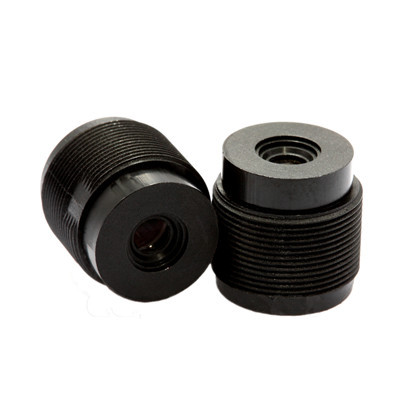

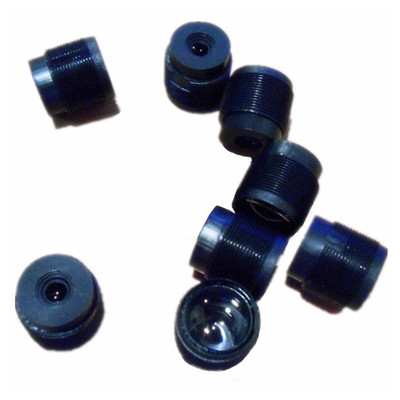

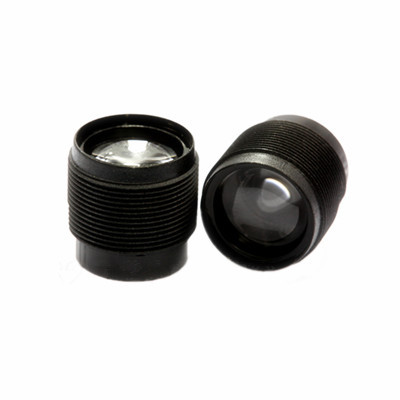

1/2″ 9.3mm 3Megapixel F2.8 M12 Mount Non-distortion lens for CCD/CMOS sensor

all types of lenses. CCTV lenses, Megapixel lenses, machine vision lenses, varifocal lenses, pinhole lenses, monofocal lenses

Category: Tag:

Product Description

1/2″ 9.3mm 3Megapixel F2.8 M12 Mount Non-distortion lens for linear array CCD sensor, suitable for TSL1401CL and 8mm linear array sensors

MODEL 129328MP
IMAGE FORMAT 1/2″
FOCAL LENGTH(mm) 9.3
F.O.V. 52°
RESOLUTION 3MP
DISTORTION <-2.0%
APERTURE 2.8
MOUNT(mm) M12x0.5
IRIS Fixed
M.O.D.(m) 0.1
B.F.L.(mm) 3.34
F.B.L.(mm) 2.04
T.T.L.(mm) 13.94
LENS COMPOMEMT 2G2P

Note:
– The lens is suitable for 1/2″, 1/3″ and 1/4″ sensors.
– IR650nm filter is available.
