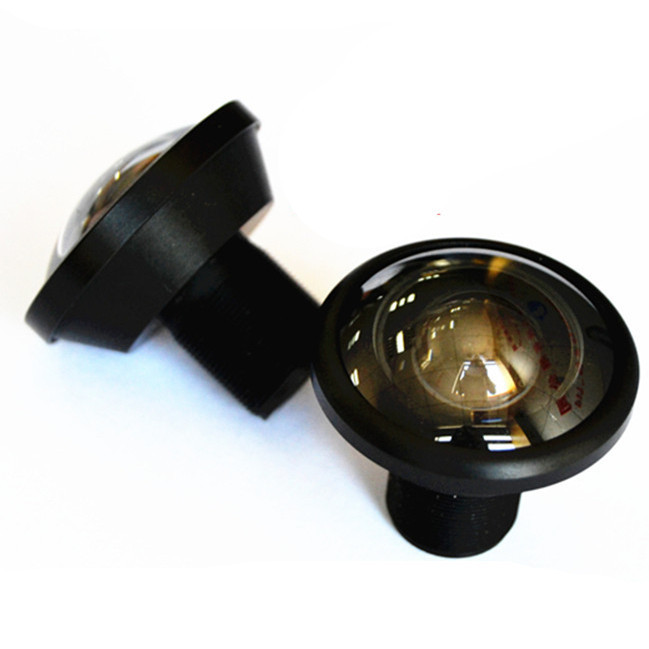

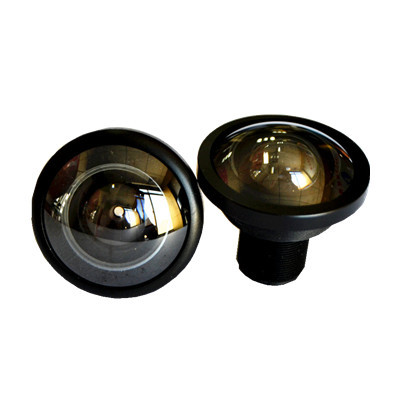

1/2.7″ 2.33mm 3Megapixel S-mount 178degree Fisheye Lens for OV2710 AR0330

all types of lenses. CCTV lenses, Megapixel lenses, machine vision lenses, varifocal lenses, pinhole lenses, monofocal lenses

Product Description

1/2.7″ 2.33mm 3Megapixel S-mount 178degree Fisheye Lens for OV2710 AR0330
Model: 1270233MPF
SENSOR SIZE 1/2.7″ OV2710 & 1/3″ AR0330
MAX IMAGE CIRCLE Φ6.77mm
FOCAL LENGTH(EFL) 2.33mm
F.O.V. (D*H*V) 1/2.7” OV2710: 177.9°*149.6°*80.9°; 1/3” AR0330: 150°*129.6°*84.5°;
RESOLUTION 3MP
APERTURE F2.3
OPTICAL DISTORTION 1/3” AR0330: H -20%, V -48.8%; 1/2.7” OV2710: H -18.3%, V -66.5%
MOUNT M12X0.5
B.F.L.(O) 3.99mm
B.F.L.(M) 2.71mm
T.T.L. 29.3mm
LENS CONSTRUCTURE 7G+IR
RELATIVE ILLUMINATION 1/3” AR0330: >99.7%; 1/2.7” OV2710: >98.8%
IR COATING 640+/-8NM AT:50%
