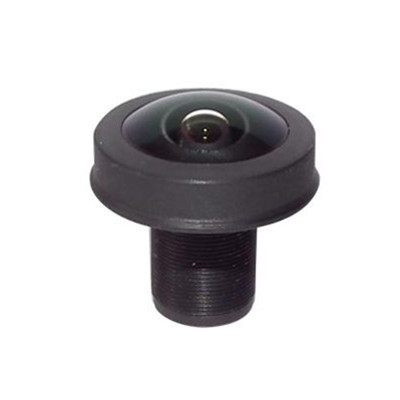

1/2.6″ 1.08mm 10Megapixel M12X0.5 mount 200degrees Fisheye Lens for CCD/CMOS

all types of lenses. CCTV lenses, Megapixel lenses, machine vision lenses, varifocal lenses, pinhole lenses, monofocal lenses

Product Description

1/2.6″ 1.08mm 10Megapixel M12X0.5 mount 200degrees Fisheye Lens for CCD/CMOS sensors OV10823, IMX214…

MODEL 1260108MP
IMAGE FORMAT 1/2.6″
FOCAL LENGTH(mm) 1.08 / Φ3.5mm @200degrees
F.O.V. 1/2.6″: 200°(D)*200°(H)*200°(V)
RESOLUTION 10MP
F-Theta DISTORTION <-7.71%
APERTURE F2.6
MOUNT(mm) M12x0.5
IRIS Fixed
M.O.D.(mm) 0.1
B.F.L.(mm) 3.26
T.T.L.(mm) 24.57
DIMENSION(mm) Φ26×21.9
