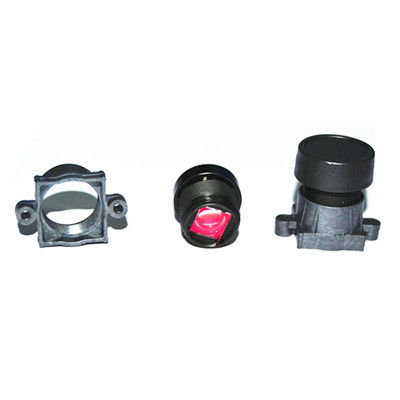

1/2.3″ 3.65mm 14Megapixel s-mount low-distortion lens for MT9F002 & OV4689

all types of lenses. CCTV lenses, Megapixel lenses, machine vision lenses, varifocal lenses, pinhole lenses, monofocal lenses

Category: Tag:

Product Description

1/2.3″ 14Megapixel low-distortion lens for MT9F002 & OV4689

Model: 123365MPF
Sensor: 1/2.3″ MT9F002 & 1/3″ OV4689
Max image circle: Ø 8.2mm
Focal length: 3.65mm
F/No.: 3.0
B.F.L.: 5.48mm
Flange back length: 4.71mm
T.T.L.: 15.91mm
Mount: M12*P0.5
Resolution 14MP
Construction: 6G+IR
CUT FREQUENCY AT50%: λ=640±8nm
