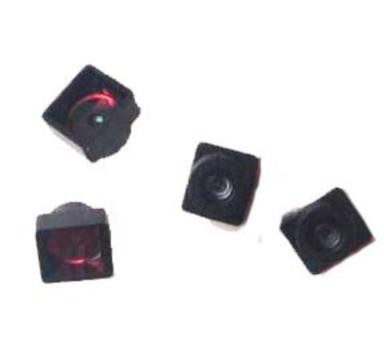

1/13″ 0.8mm medical lens F4.0 M3.5×P0.25 endoscope lens for 1/13″ sensor

all types of lenses. CCTV lenses, Megapixel lenses, machine vision lenses, varifocal lenses, pinhole lenses, monofocal lenses

Category: CCTV Lens & Machine Vision Lenses Tag: endoscope lens

Description

Product Description

1/13″ 0.8mm lens for MT9V124 sensor F4.0 M3.5×P0.25 endoscope lens, TTL 2.86mm, medical video equipment lens
Model: 113080
IMAGE FORMAT: 1/13″ MT9V124
SENSOR: MT9V124
FOCAL LENGTH: 0.8mm (±5%)
MAX IMAGE CIRCLE: Φ1.6mm
F.O.V: 80°(D)*68°(H)*53.4°(V)
RESOLUTION: VGA
OPTICAL DISTORTION: <2%
APERTURE: F4.0 (±5%)
MOUNT: M3.5XP0.25
B.F.L.: 1.385mm
M.O.D.: 0~50mm
T.T.L.: 2.86mm±0.05mm
LENS CONSTRUCTURE: 2P
