10W 2.4G 4 Channels Wireless Transmitter Receiver A/V Audio Video Sender A/V Audio Video Sender Transmitter

Product Description

Features
• High working frequency and strong anti-interference capacity;
• Employing a brand-new circuit and design, which ensures efficient reception of clear audio and video signals;
• Providing a multiplicity of channels for users selection; interference between different channels minimized;
• Possessing application expandability, highly adaptable;
• Full aluminum enclosure, providing enhanced radiation and anti-interference capacity.

Performance indicators
• Working frequency bands:2331-2391MHz
• Channels available:4;
• Transmit dual-track audio and visual signals;
• Video signal format: PAL/NTSC;
• Audio input impedance:1KΩ; visual input impedance:75Ω
• Emissive power is standard 10W, effectively transmits the distance to be possible to amount to 700-800 meter depending on environments;
• Dimension: T: 175mmX80mmX45mm, R: 115mmX70mmX25mm
• Power supply: DC 12V 4A

Installation:
Open the packaging box. the one marked “TX” is the transmitter, and the one marked “RX” is the receiver.

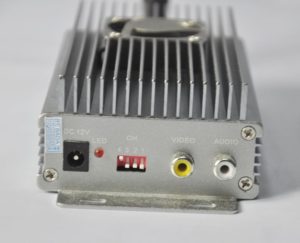

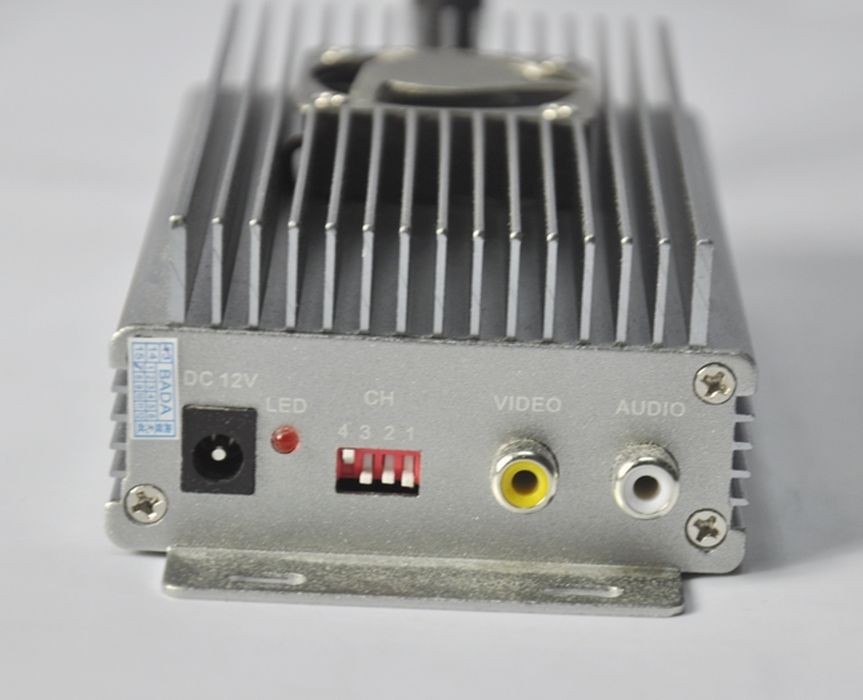

Transmitter Installation:
• Select the working channel;
• Use the audio and video cable to connect the transmitter to audio and video signal;
• Set up the antenna;
• Plug the power adaptor into an electrical outlet to transmit its direct current to the transmitter.
Receiver Installation:

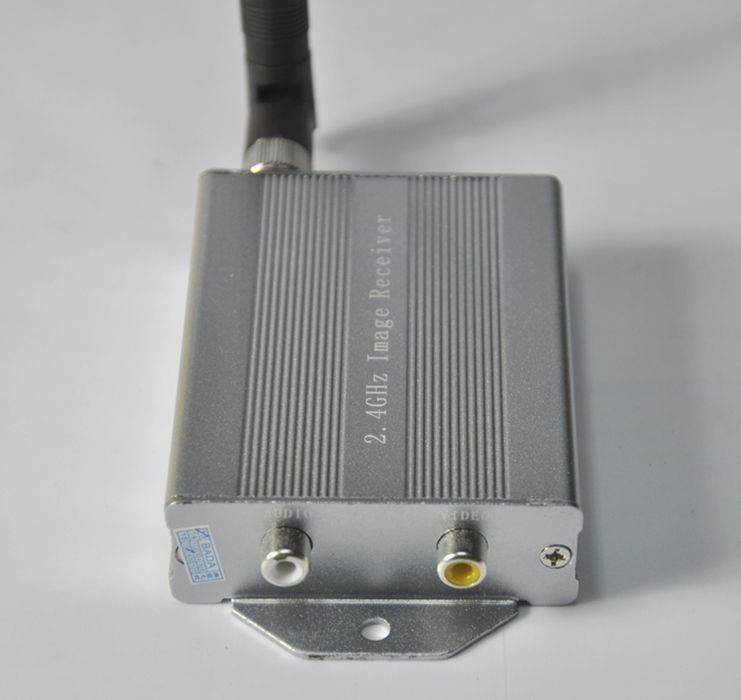

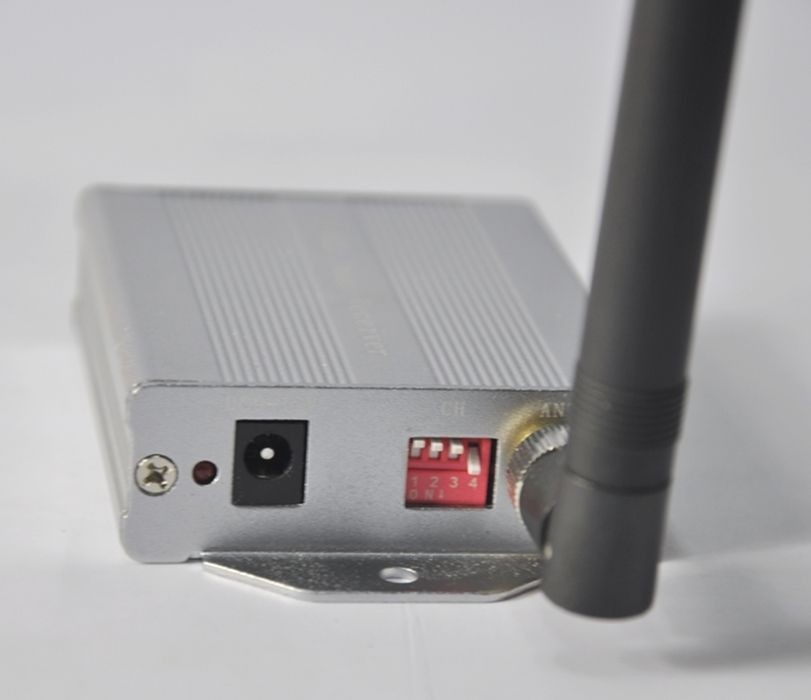

The receiver can be installed according to the same procedure for installing the transmitter. The working channel should be the same as the one for the transmitter. the audio and video should be connected to the television or monitor.
After the transmitter and receiver have been installed, observe the reception results. adjust the antenna angle of the transmitter and receiver until the best sound and image are obtained.
The device provides six channels for selection. to switch to another channel, push down the channel switch by one notch.
Multiple-Channel Scanning Reception:
Each transmitter has a fixed working frequency; no two frequencies share the same. reception by scanning on one receiver allows the user to monitor multiple scenes. to monitor multiple scenes, simply push down the selection switches of all related working frequencies (up to six scenes can be monitored simultaneously).

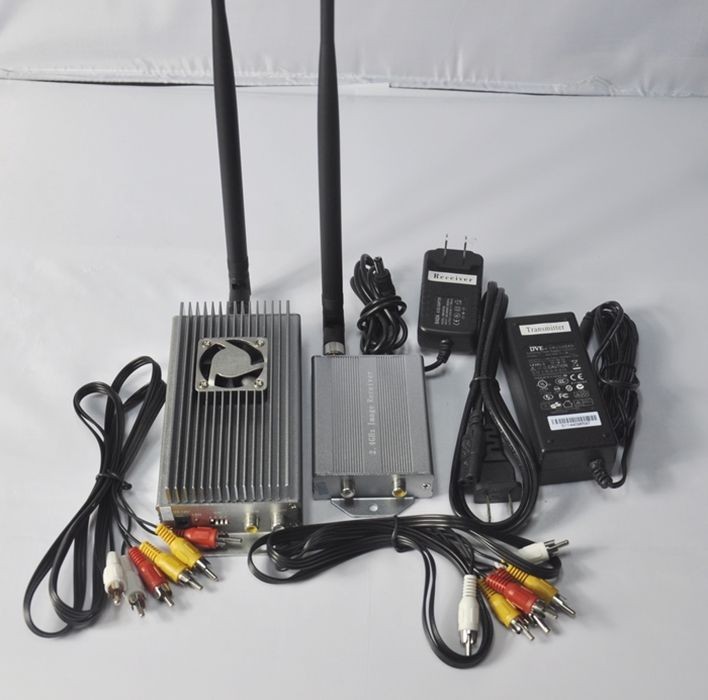

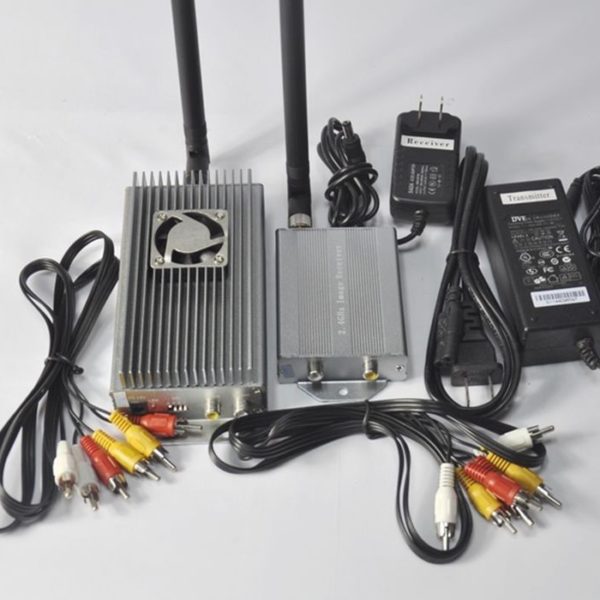

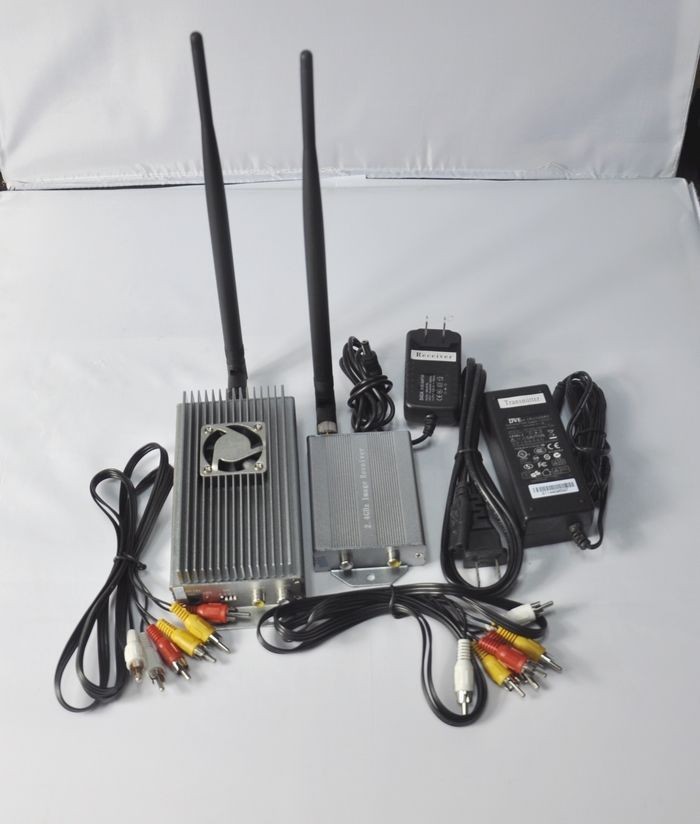

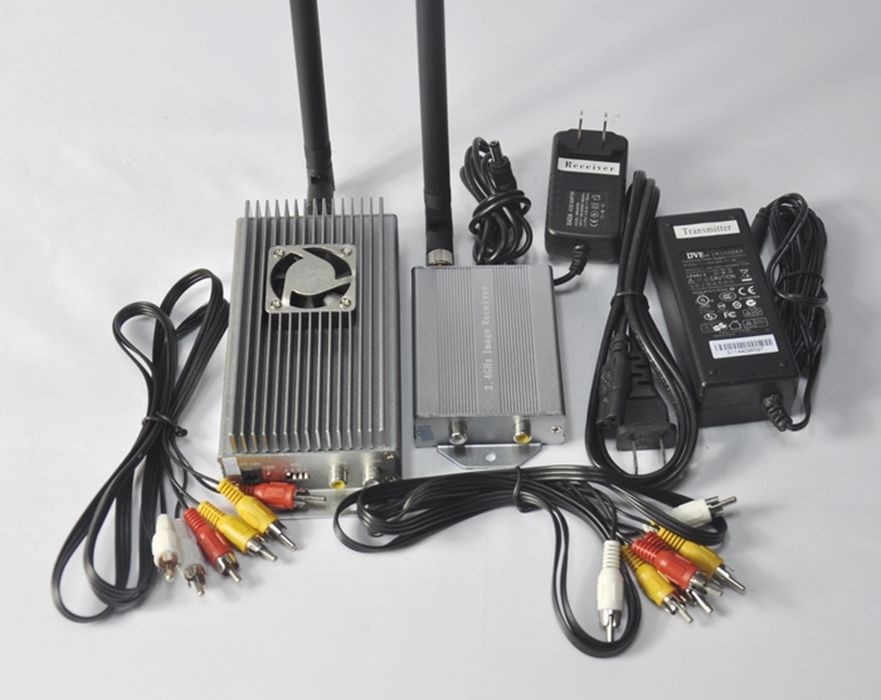

Packing List:
• One receiver and one transmitter;
• Two power adaptors;
• Two audio and video cables;
• One copy of users instructions.

CAUTIONS:
• To avoid damage to the antenna, do not use excessive force to rotate the antenna when adjusting its angle;
• To avoid damage to the device, do not use power adaptors other than those supplied by the manufacturer of this device;
• One transmitter can work on one frequency only; the frequency select switch of the transmitter can be pushed down to the next notch only;

10W 2.4G 4 Channels Wireless Transmitter Receiver A/V Audio Video Sender Receiver Combo 10000mw
Overview：
1. Select the working channel;
2. Usethe audio and video cable to connect the transmitter to audio and video signal;
3. Set up the antenna;
4. Plug the power adaptor into an electrical outlet to transmit its direct current to the
transmitter.

Features:
1. High working frequency and strong anti-interference capacity;
2. Employing a brand-new circuit and design,which ensures efficient receptio of clear
audio and video signals;
3. Providing a multiplicity of channels for users selection;interference between different
channels minimized;
4. Possessing application expandability,highly adaptable;
5. Full aluminum enclosure,providing enhanced radiation and anti-interference
capacity.

Specifications:
Model:WLK-0016
1. Working frequency bands:2331-2391MHz
2. Chanels available:4;
3. Transmit dual-track audio and visual signals;
4. Visual signal format:PAL/NTSC;
5. Audio input impedance:1KΩ;visual input impedance:75Ω
6. Power supply:DC 12V 4A
7. The actual enable distance:800-1500M (Wide transmiting range depending on the
environments)
8. T:175mmx80mmx45mm R:115mmx70mmx25mm

NOTE:

1. To avoid damage to the antenna,do not use excessive force to rotate the
antenna when adjusting its angle;

2. To avoid damage to the device,do not use power adaptors other than
those supplied by the manufacturer of this device;

3. One transmitter can work on one frequency only;the frequency select
switch of the transmitter can be pushed down to the next notch only.

Package:
1 X Receiver and transmitter;
2 X Power adaptors;
1 X Audio and video cables;
1 X Users instructions.
