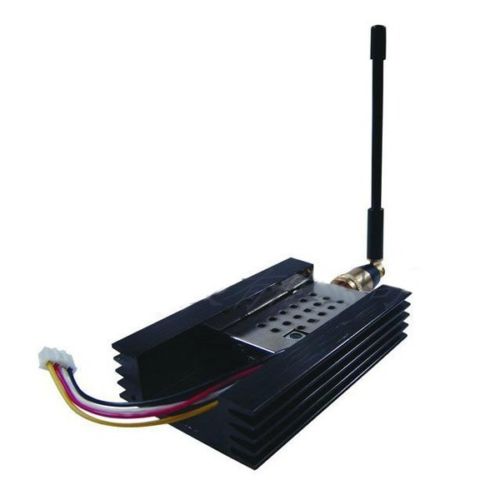

1.2G 700mW Wireless AV Transmission FPV Transmitter Sender TX

Product Description



1.2G 700mW Wireless AV Transmission FPV Transmitter Sender TX

Specifications:
– Model: 700mW(A)
– Dimension: 50*18*87mm
– Send power: 700mW
– Send frequency: HC1:1080 HC2:1120 HC3:1160 HC4:1200(MHz)
– Frequency control: Phase-lock loop control
– Signal: Audio/Video
– Transmission distance: about 200m
– Voltage: DC+12V
– Current: 1A

Transmitter description :

Power consumption：700mW

Frequency: 1.2Ghz – HC1:1080 HC2:1120 HC3:1160 HC4:1200(MHz)

Output：Video & Audio

Size：50×18×87（mm）

Voltage：DC+12V

Transmission distance without obstacle：～300M

Notice:

Antenna must be attached on the transmitter before power up. Otherwise, the transmitter will be burned out because the excess power cannot be released by the antenna.

Package include:

1x 700mW Transmitter
1x Antennas
