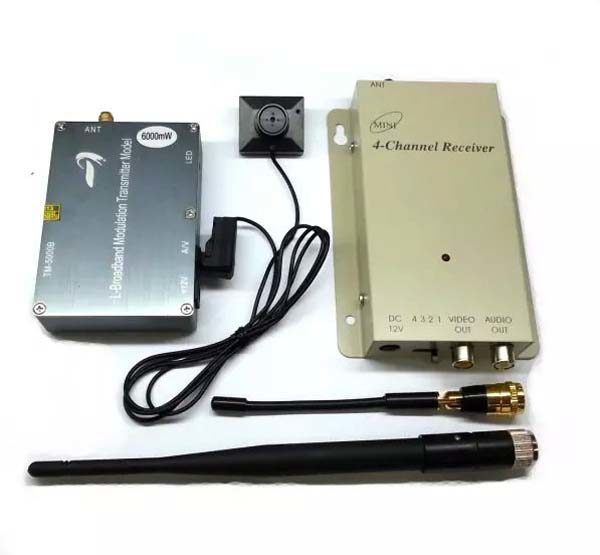

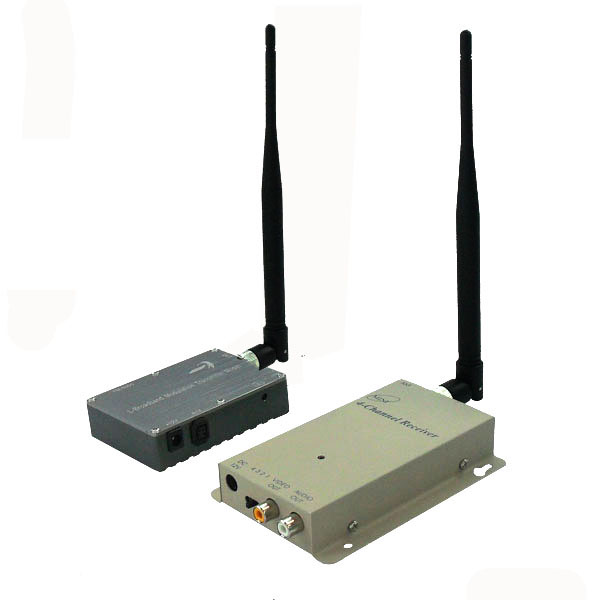

1.2G 6000mW Wireless Audio Video Transmitter Receiver with Spy Button Pinhole Camera

Product Description

This is a great transmitter and a receiver for both video and audio ;
It allows you to transmit video and audio to one location to another, it`s good for home and office use ;
Microwave anti-interference performance well ;
This machine sound/video signal adopt the microwave transmission means with 1.2G frequency;
Transmitter description:
Transmit Power: 6000mW
Working frequency: 1.2G (1080mhz -1120mhz -1160mhz -1200mhz )
Working voltage: DC12V
Operating Current: 900mA
Body product:83*58*18(mm)
Weight: 150g around
Size : 60X45x20mm
Channel Selection: 4-channel audio and video synchronization
Transmitter Distance: (open air and no interference ) up to 500m- 1.5 km around ( factory data for reference ). If you need them to work with more longer distance , you shall consider to add more powerful antennas for transmitter and receiver..

Receiver description:
Working band: 1.2G (1080mhz -1120mhz -1160mhz -1200mhz )
Body product: 115 * 80 * 21mm
Weight: 126g
Channel Selection: button to select
Receiving Mode: Manual receiver
Operating voltage: 12V
Operating Current: 800mA

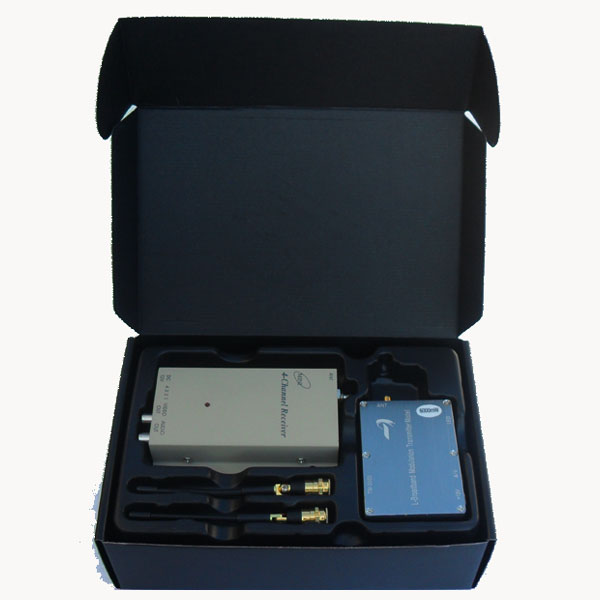

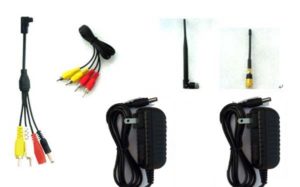

Package including :
1x 4 Channels AV Wireless Receiver
1x 4 Channels Wireless AV Transmitter
1x AV Cable for Receiver
1x AV Cable for Transmitter
1x 1.2G Antenna for Receiver
1x 1.2G Antenna for Transmitter
2x DC adapter for Transmitter and receiver each

Taiwan 1.2G FPV 6W 6000mw Strengthen Version Transmitter + Receiver Long Distance Telemetry Set

Description:
– TM – 6000 – a wireless av transmission equipment is a all aspects are excellent product performance, its power margin,small power consumption, normal working condition power consumption is only about 550 ma. And small volume, long transmission distance, more suitable for all kinds of complicated practical environment. In the use of 7 db of omnidirectional antenna (i.e., the original small antenna), clearing can guarantee the transmission of about 1500 m, if higher directional antenna gain, distance can be increased to 2 km above, under the condition of general block can also transport around 500-600 m

Transmitter parameter:
– Model:TM-6000A
– Voltage:12V DC
– Current:550mA
– Size::83*58*21(mm)
– Transmission power:6000mW

Specifications:
– Wave:L (short wave)
– Frequency:1060-1380 MHZ
– Channel:4
– Impedance:50Ω
– 6.0MHz/6.5MHz
– video input impedance:75Ω
– Audio input impedance:600Ω
– Transmission range:1000m above
– Package size:230X66X153mm
– Package weight:0.74kg

Package inlcuded
– 1 x transmitter 6w 6000mw
– 1 x receiver
– 2 x 12V power adapter
– 1 x antenna
– 1 x cable
– 1 x user manual(Chinese)





Model:
TM-5000B
Input Voltage:
DC 12V
Consumption current:
520mA
Working Frequency:
1.2G~1.3G
Channel:
4CHS
Output Power:
6000mW
Video input / video modulation:
1 Vp-p(FM)
Audio input / audio modulation:
1 Vp-p(FM)
Audio carrier:
5.5M 6.0M
Weight:
175g
Dimension:
83*58*21mm
Color:
Gray

Transmission distance （Open Space）:
200M～380M
Package Including:
Transmitter,Receiver,antennas,AV cables,Power,Manual,Box

Operating Temperature:
-10℃～+55℃

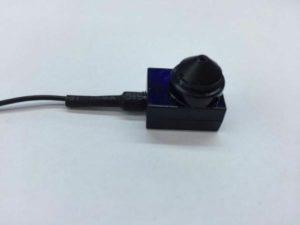

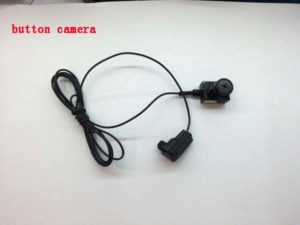

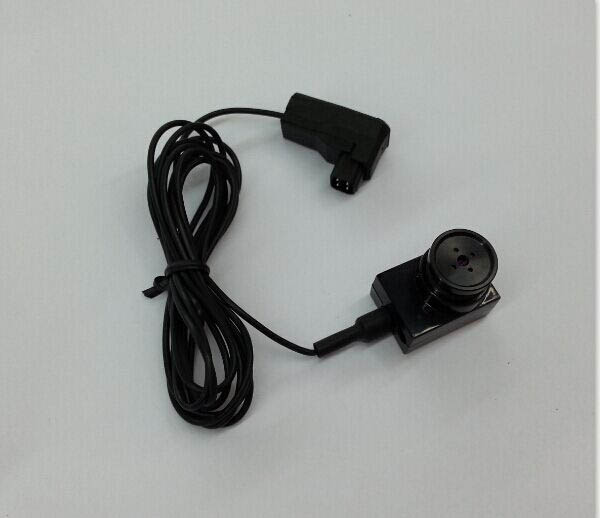

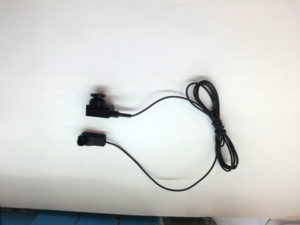

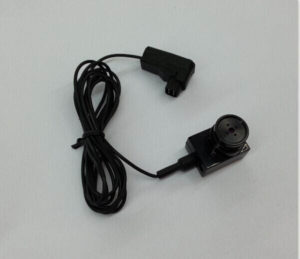

Camera Specifications:
Name: 6012 Series
Image Sensor: 1/4-inch CCD
Effective Pixels: PAL: 720 (H) * 576 (V) NTSC: 720 (H) * 480 (V)
Horizontal Resolution: 420TV Lines,
Perspective: 78 °
Minimum Illumination: 1.0Lux
Synchronization System: Internal Synchronization
Gain Control: Automatic
Electronic shutter time:
Automatic PAL,: 1/50-1/100000sec NTSC: 1/60-1/100000sec
Scanning System: PAL: 625Lines, 50Field/sec NTSC: 525Lines, 60Field/sec
Video Output: 1Vp-p75ohm The
Operating temperature: -20 ℃ – 65 ℃ RH 95% Max
White Balance: Auto
Backlight Compensation: Auto
Working voltage: DC12V/100mA,
Size: 1.5cm* 2.0cm * 1.8cm
Lens options: standard 3.6mm
Package include:

wireless transmitter 1

wireless receiver 1

Power Adapter 2

Audio and video cable 1

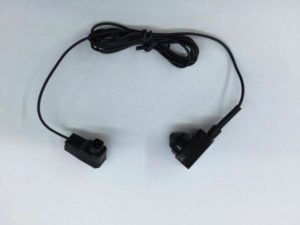

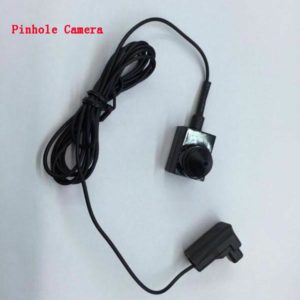

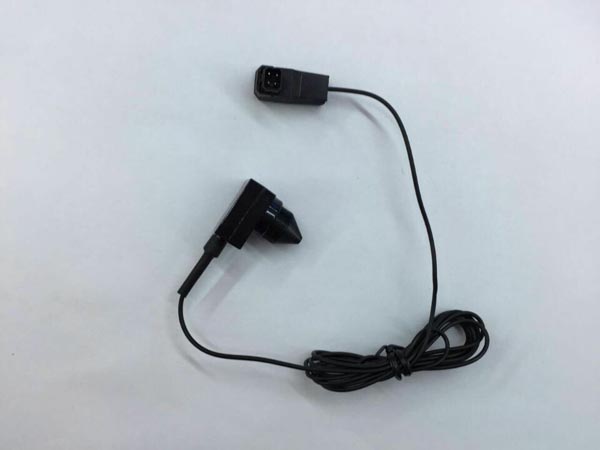

button camera or Pinhole Camera 1
